RICH SOLAR

Rich Solar 20 Amp MPPT Solar Charge Controller - RS-MPPT20

SKU RS-MPPT20
$89.99
Rich Solar 20 Amp MPPT Solar Charge Controller - RS-MPPT20

Product Description

Features

  • Automatically detects 12V or 24V DC system voltages
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
  • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
  • Features diverse load control; also capable of charging over-discharged lithium batteries

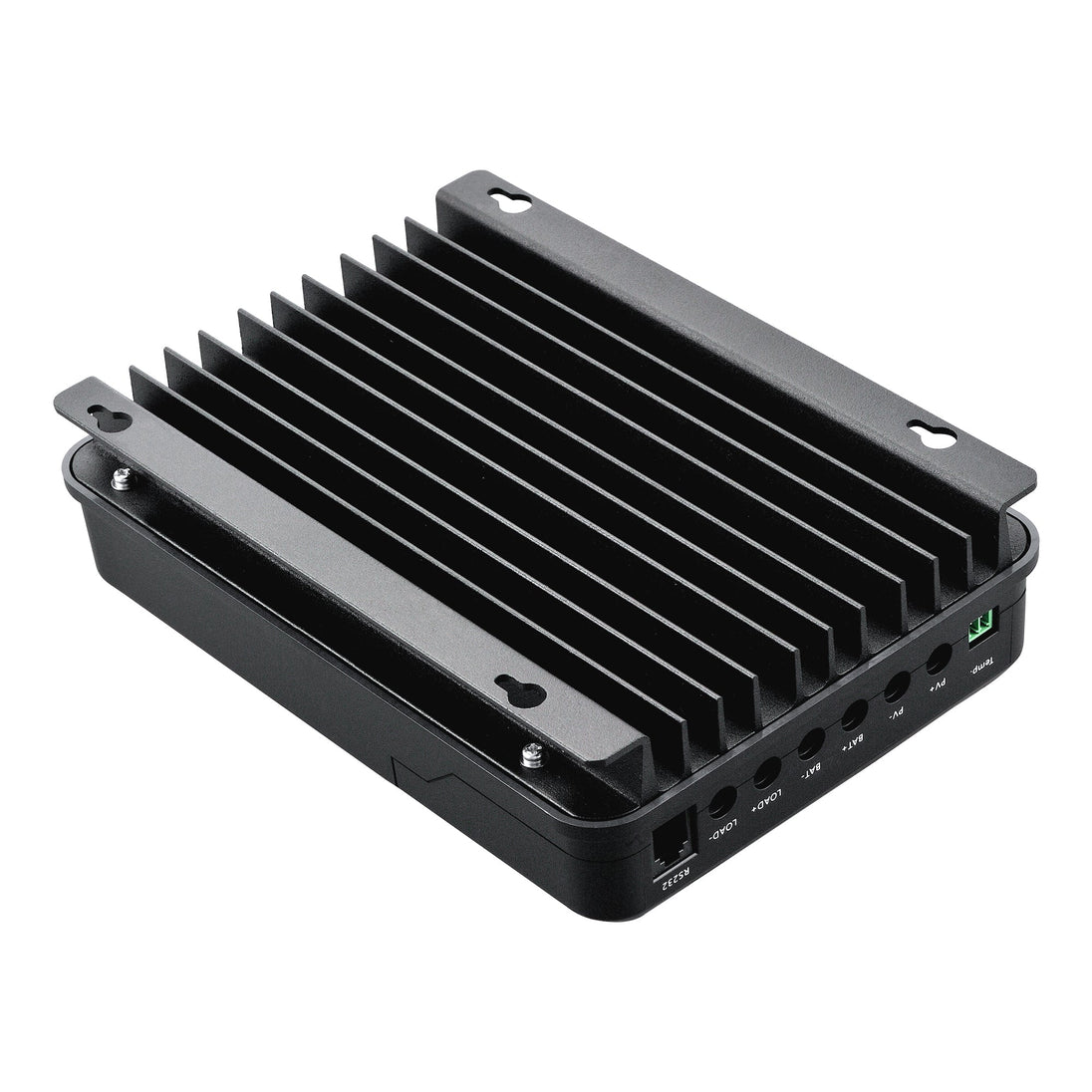

  • Die-cast aluminum design allows for efficient heat dissipation
  • RS232 port to communicate with BT-1 Bluetooth module


Specifications

  • Nominal System Voltage: 12V/24V Auto Recognition
  • Rated Battery Current: 20A
  • Rated Load Current: 20A
  • Max. PV Input Short Current: 25A
  • Max. Battery Voltage: 32V
  • Max Solar Input Voltage: 100 VDC
  • Discharge Circuit Voltage Drop: ≤0.15 V
  • Max. Photovoltaic System Input Power: 260W/12V, 520W/24V
  • Conversion Efficiency: ≤98%
  • MPPT Tracking Efficiency: >99%
  • Operating Temperature: -35℃ to +45℃
  • Protection Degree: IP32
  • Net Weight: 3.08 lb
  • Overall Dimensions: 8.27 x 5.94 x 2.34 in
