Product Description

Features

  • Generates 11.5 amps of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.

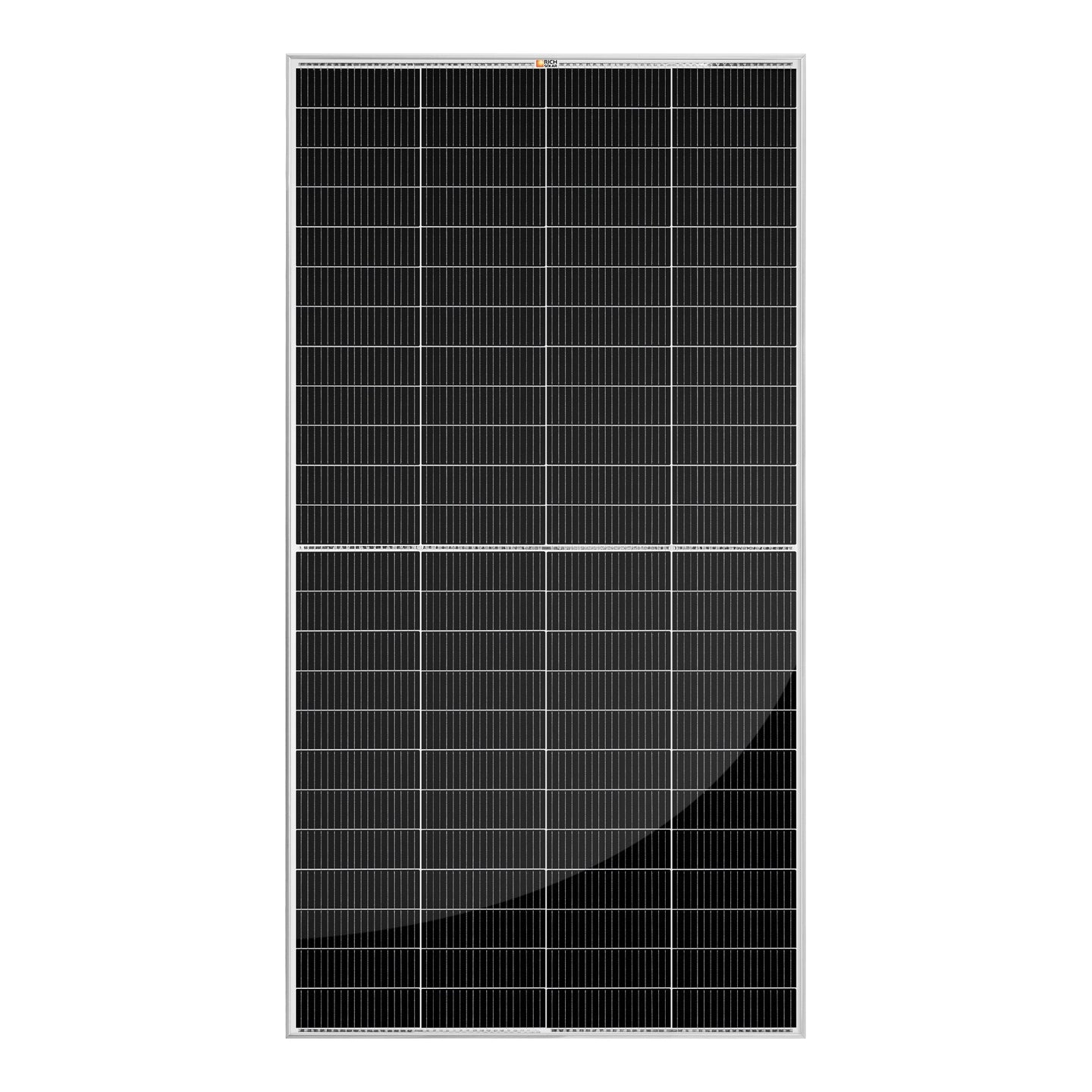

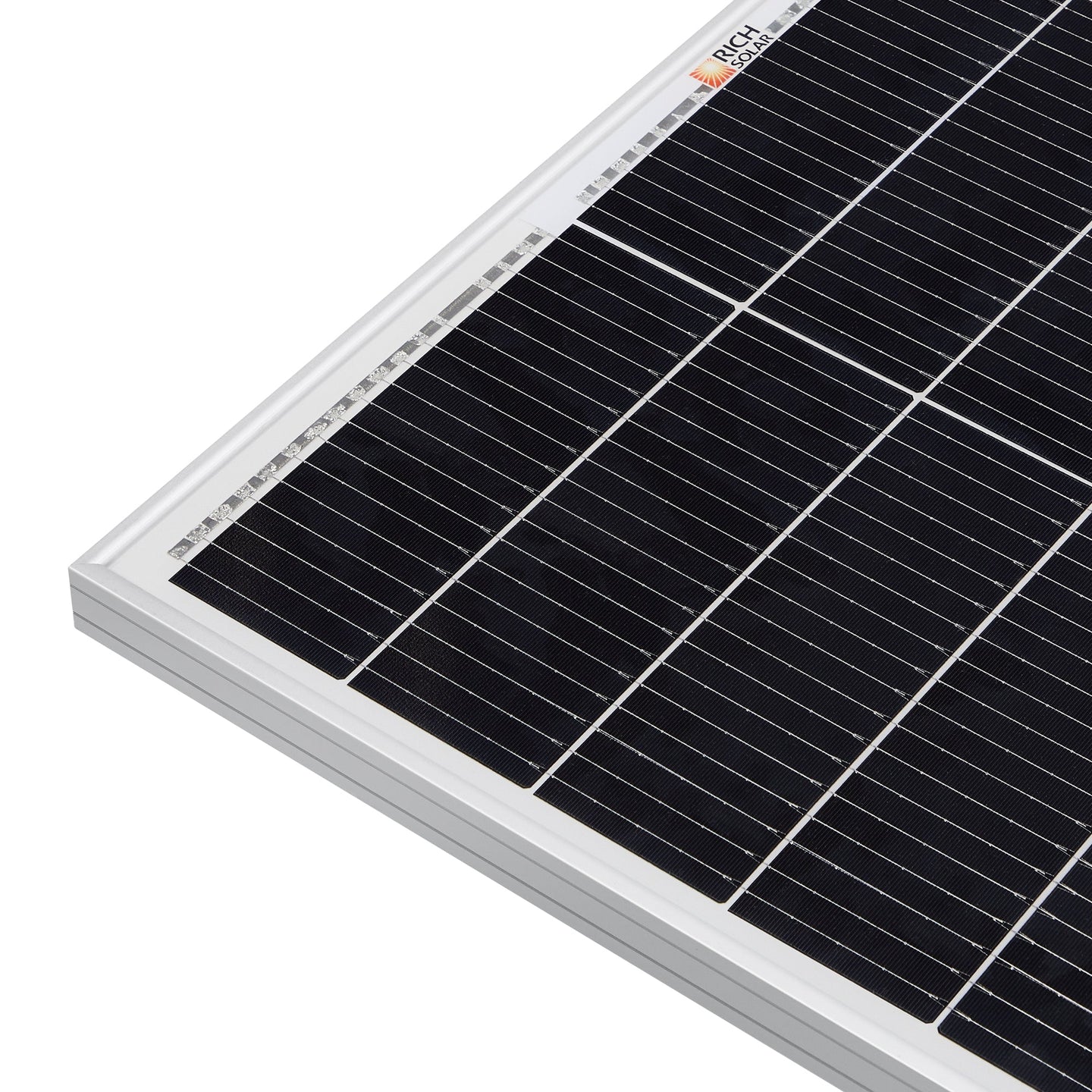

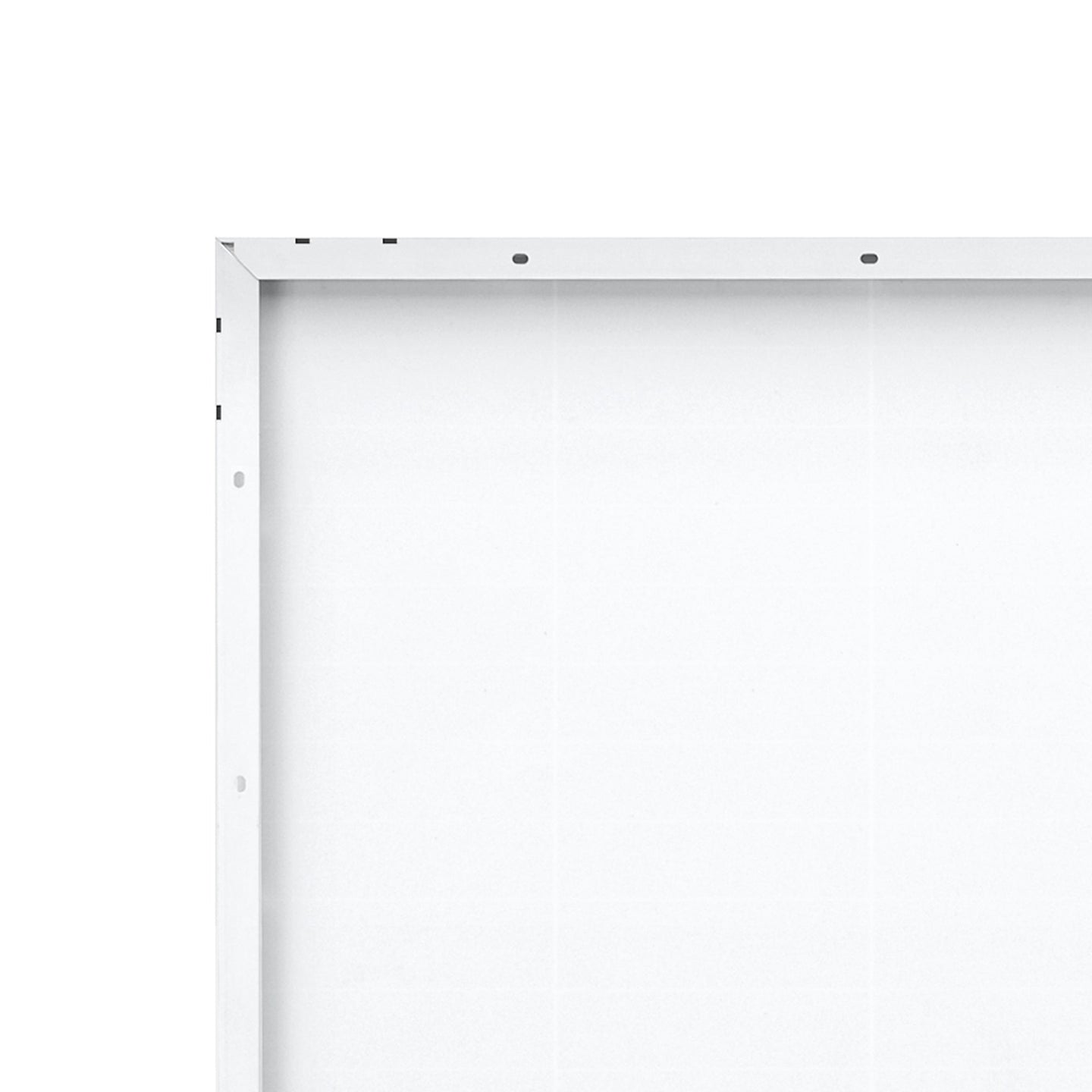

  • Built with strong high transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year power output warranty and a 10-year workmanship warranty.

Installation

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Warranty

  • 25-year output warranty.
  • 10-year workmanship warranty.

Built-in Components

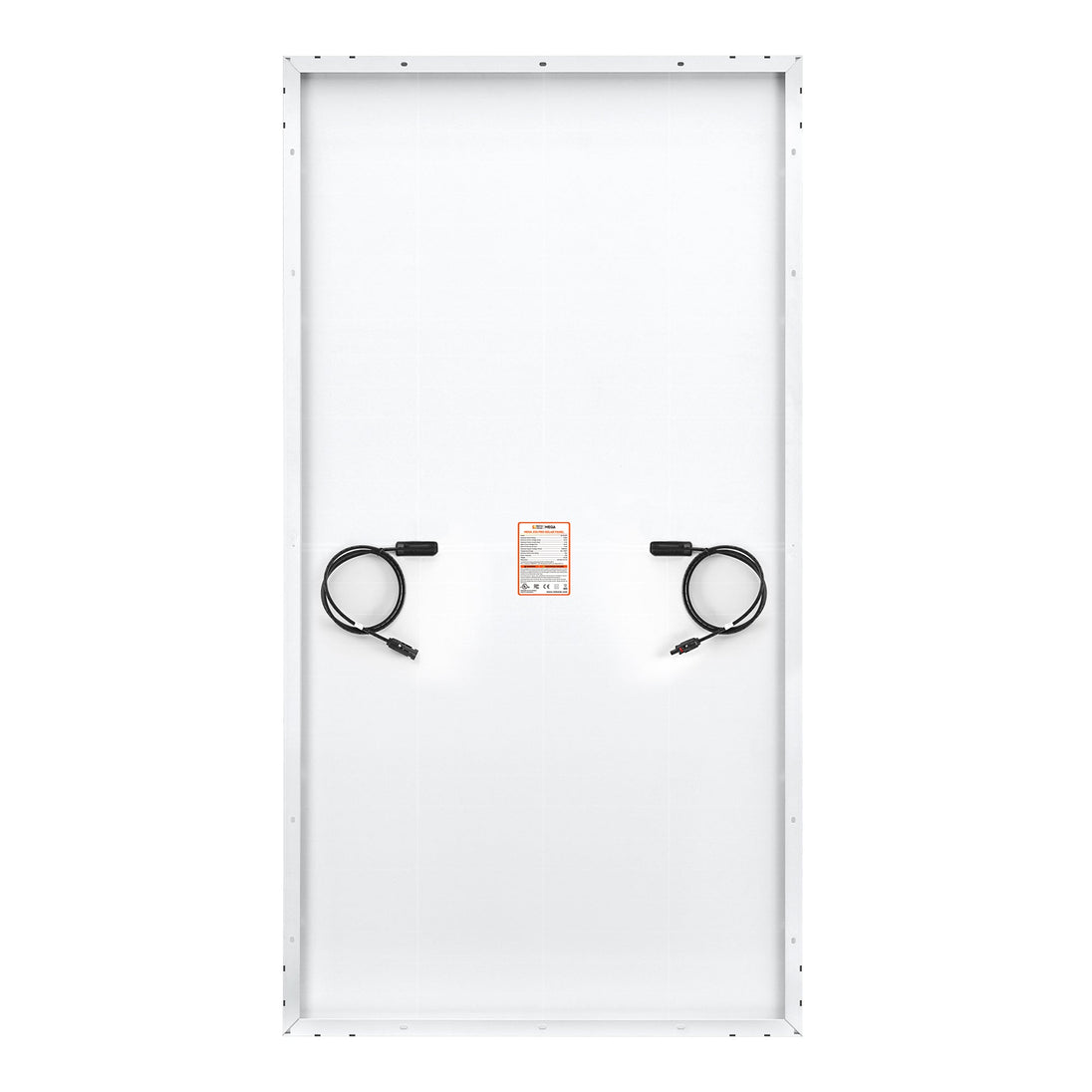

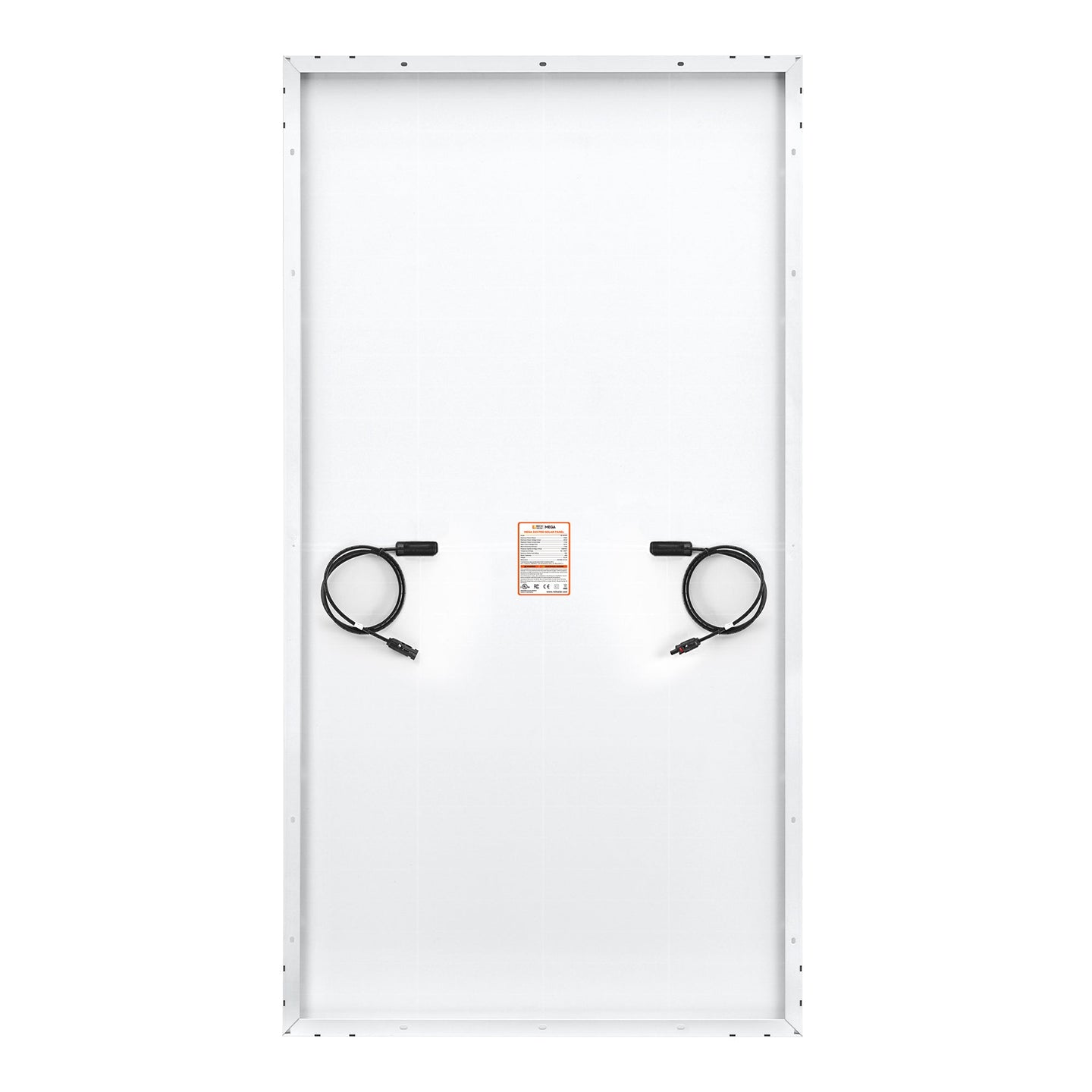

  • Panel leads (pair): 3 feet each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box

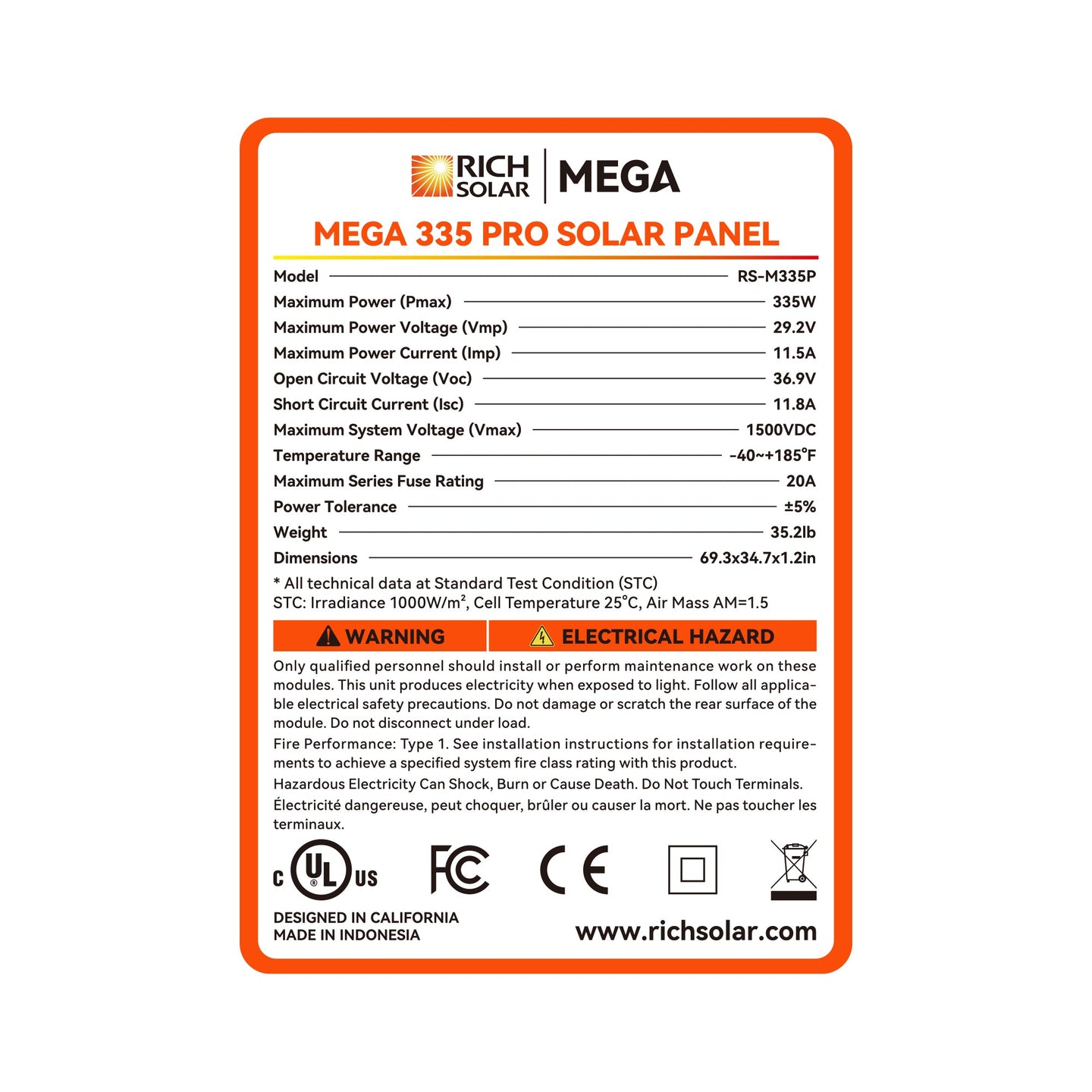

Specifications

  • Maximum Power(Pmax): 335W
  • Maximum Power Voltage(Vmp): 29.2V
  • Maximum Power Current(Imp): 11.5A
  • Open Circuit Voltage(Voc): 36.9V
  • Short Circuit Current(Isc): 11.8A
  • Maximum System Voltage(Vmax): 1500VDC
  • Temperature Range: -40°F ~ 185°F
  • Max Series Fuse Rating: 20A

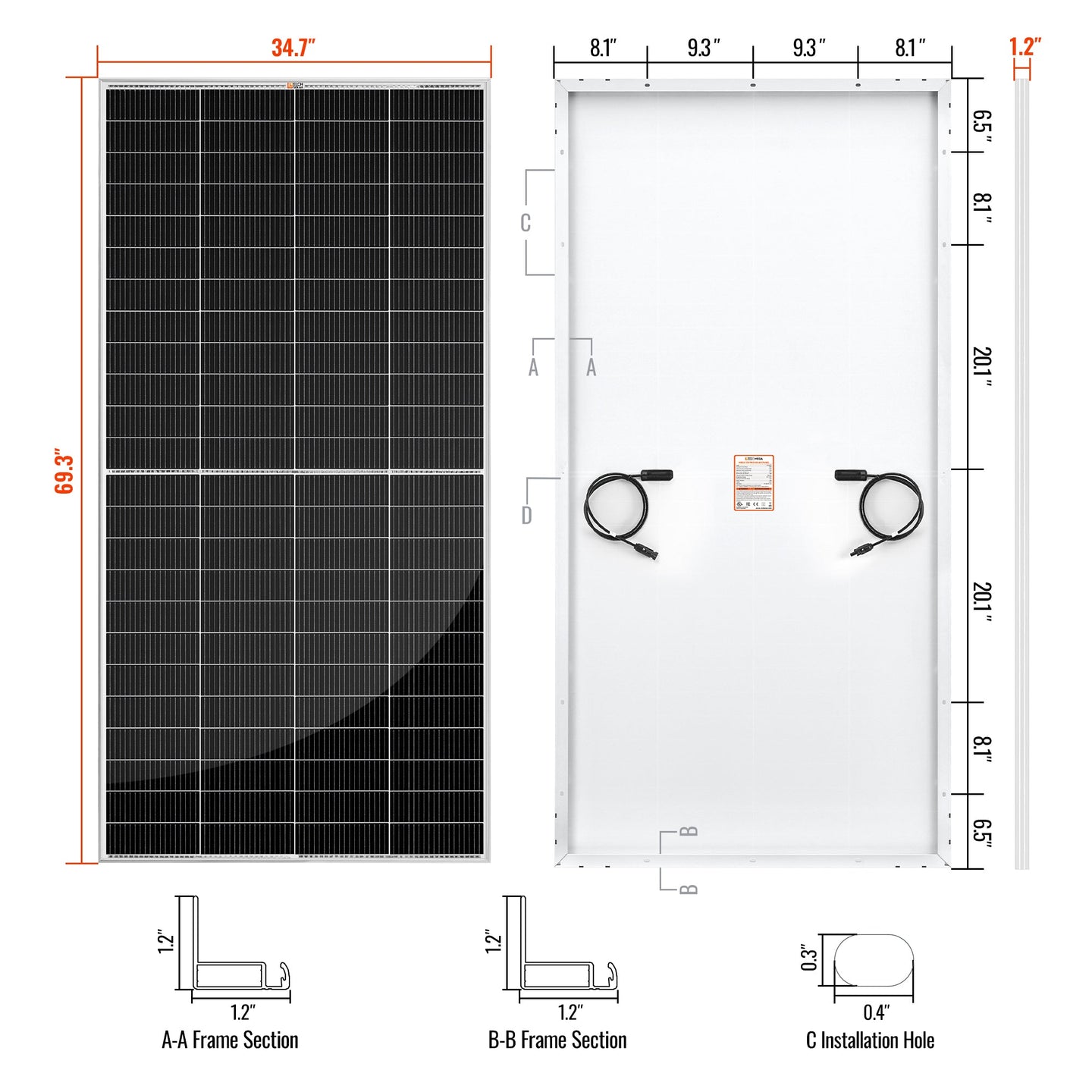

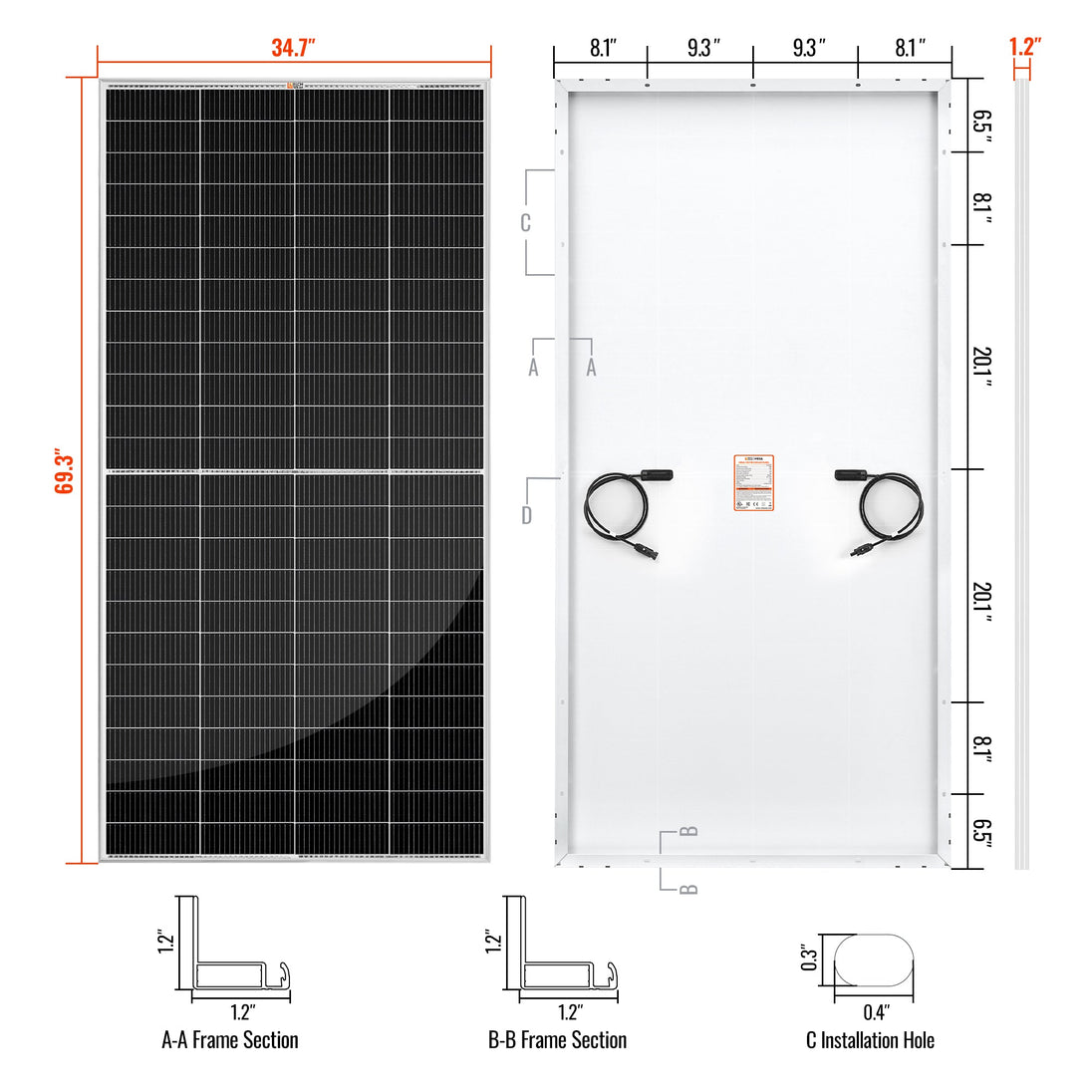

  • Dimensions: 69.3 x 34.7 x 1.2 in
  • Weight: 35.2 lb
