Villa Pergola Motorized Louver w/ Edge Lighting

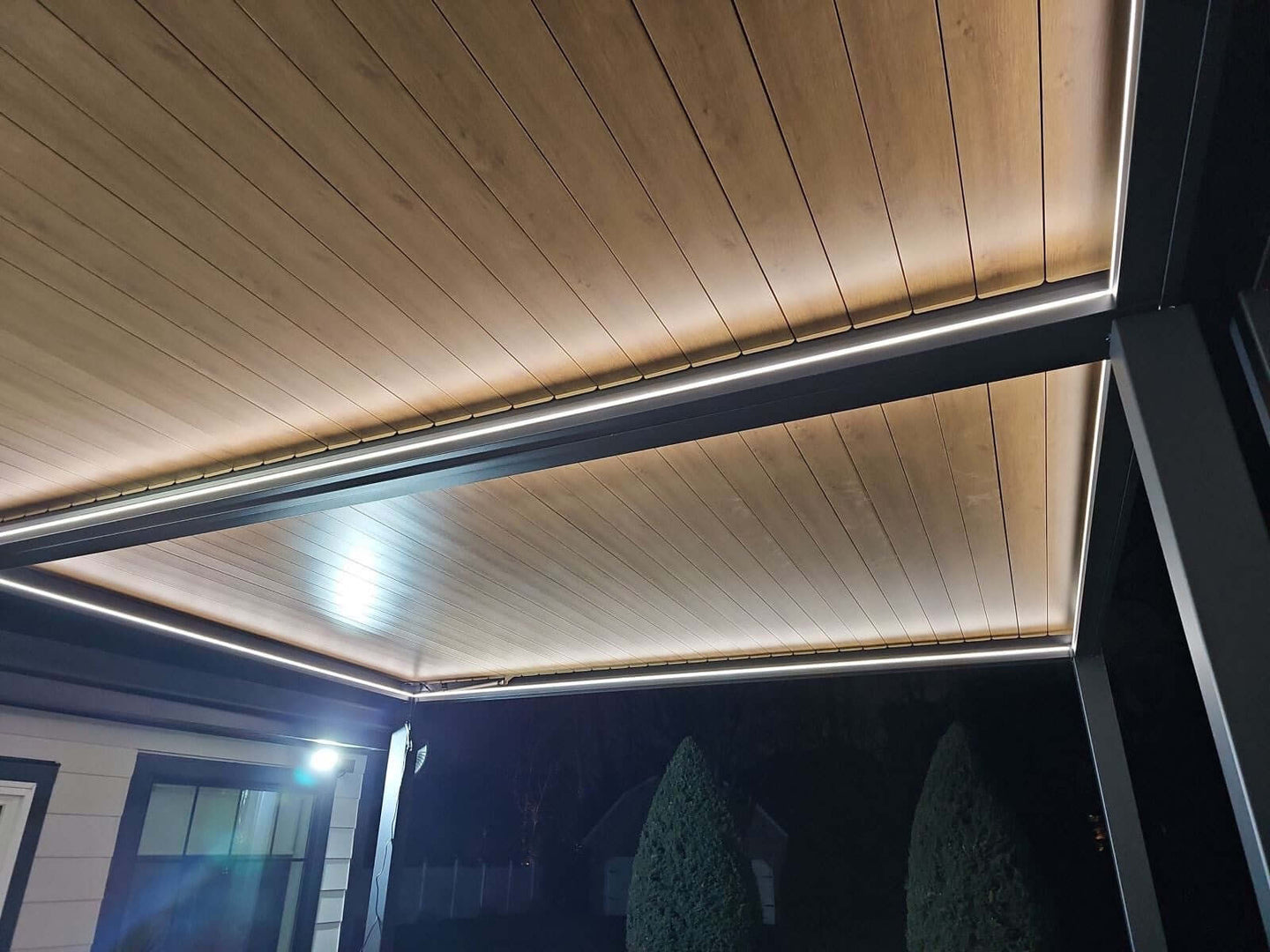

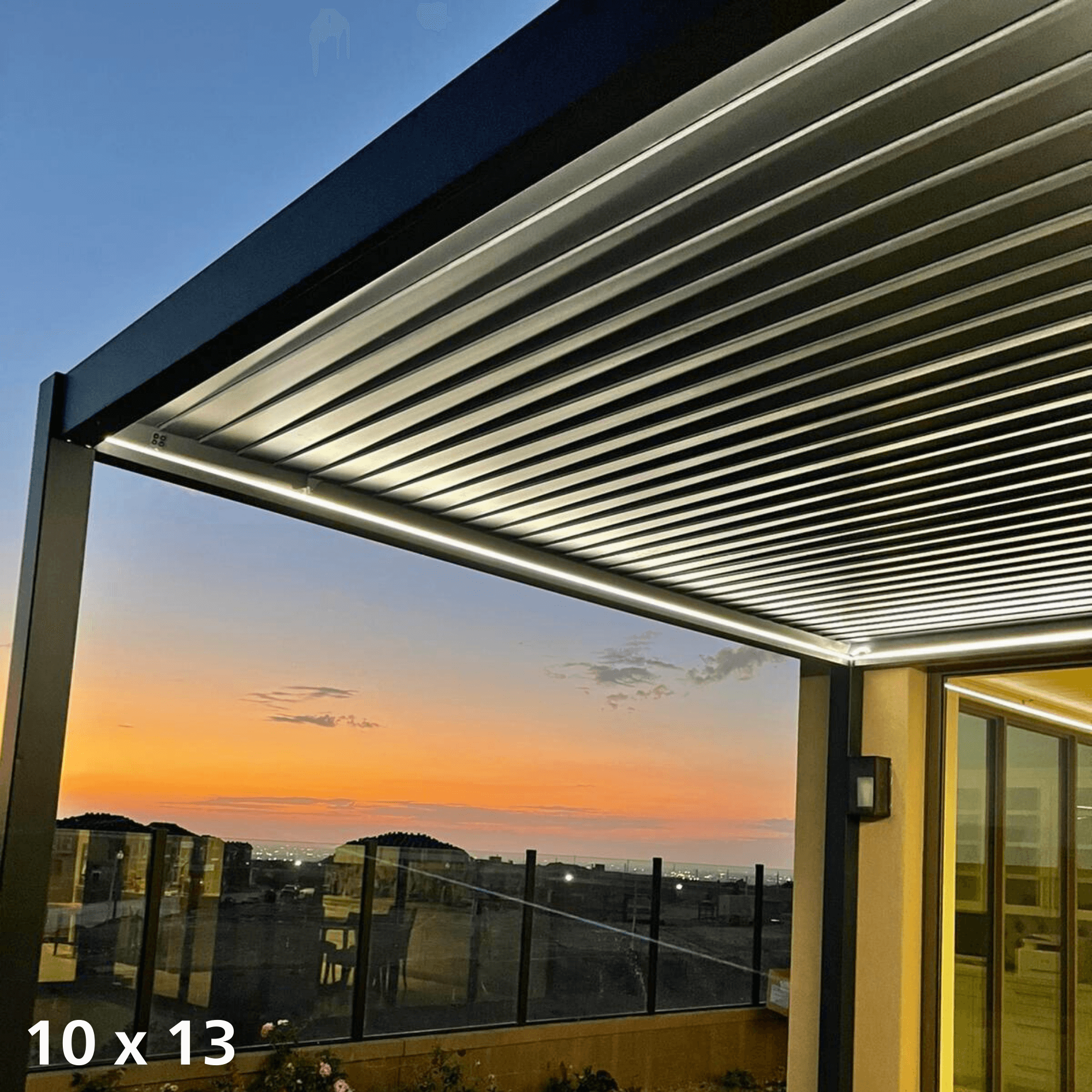

The Villa Pergola motorized with edge lighting is the perfect blend of sophistication and functionality. The luxurious LED lights accentuate the modern structure. The aluminum materials enhance the elegant look while remaining sturdy.

Whether you're aiming for a cozy atmosphere or a lively party spot, this Villa Pergola motorized with edge lighting is the perfect addition. BON Pergola offers incredible aluminum louvered pergola kits that are easy to build without compromising on quality.

• Villa pergola is premium quality massive produced pergola, so we can lower the cost for you.
• Top Quality extruded aluminum alloy material with construction grade.

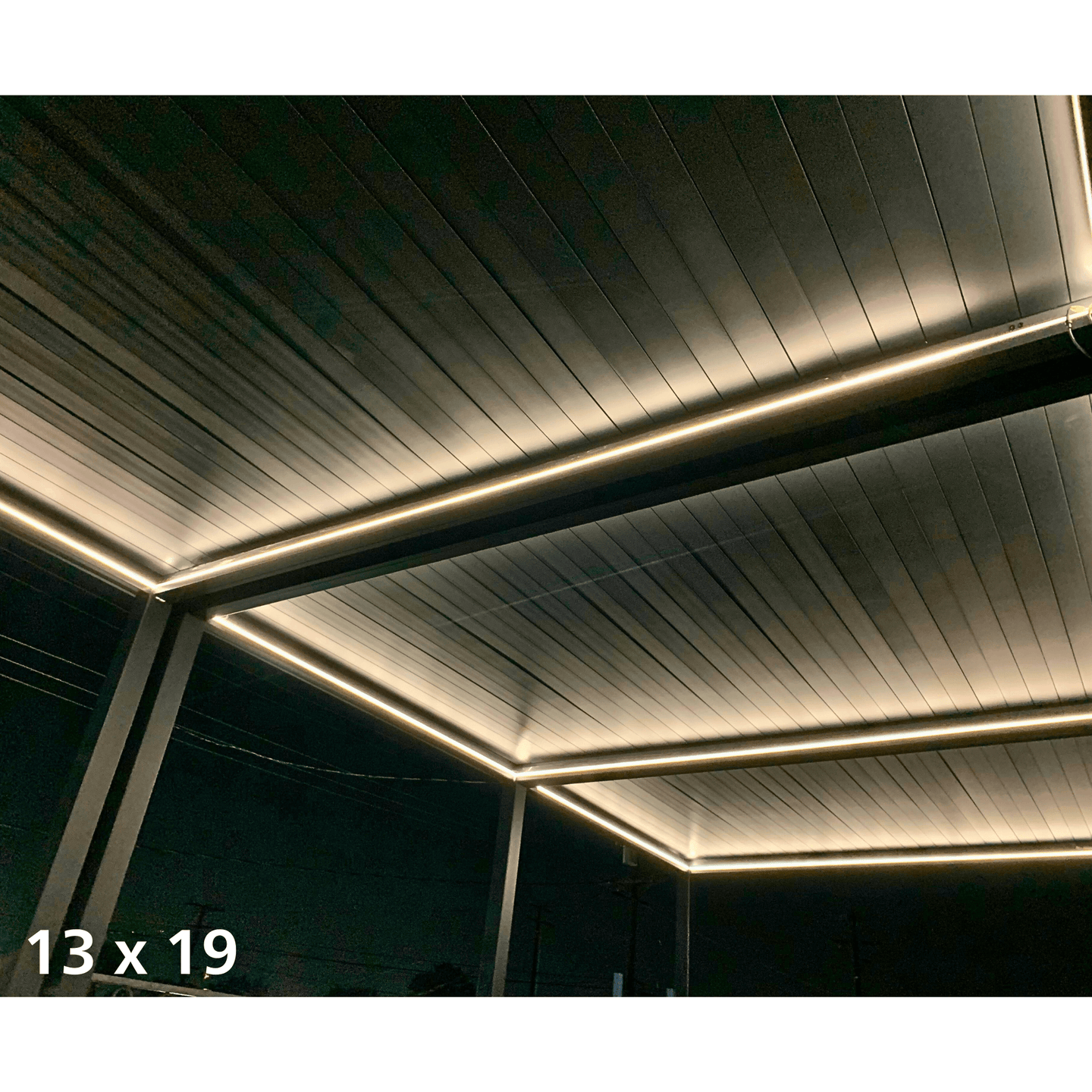

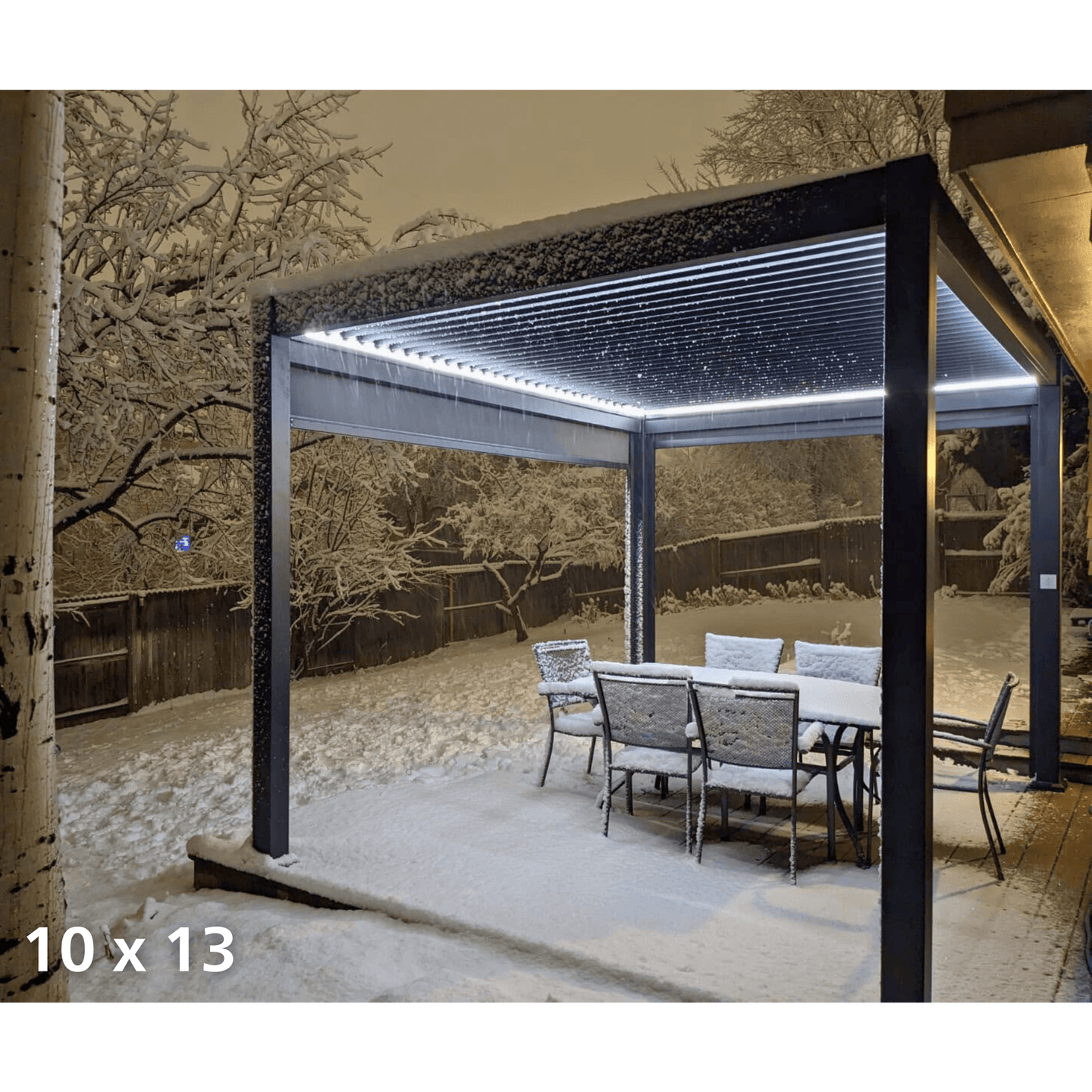

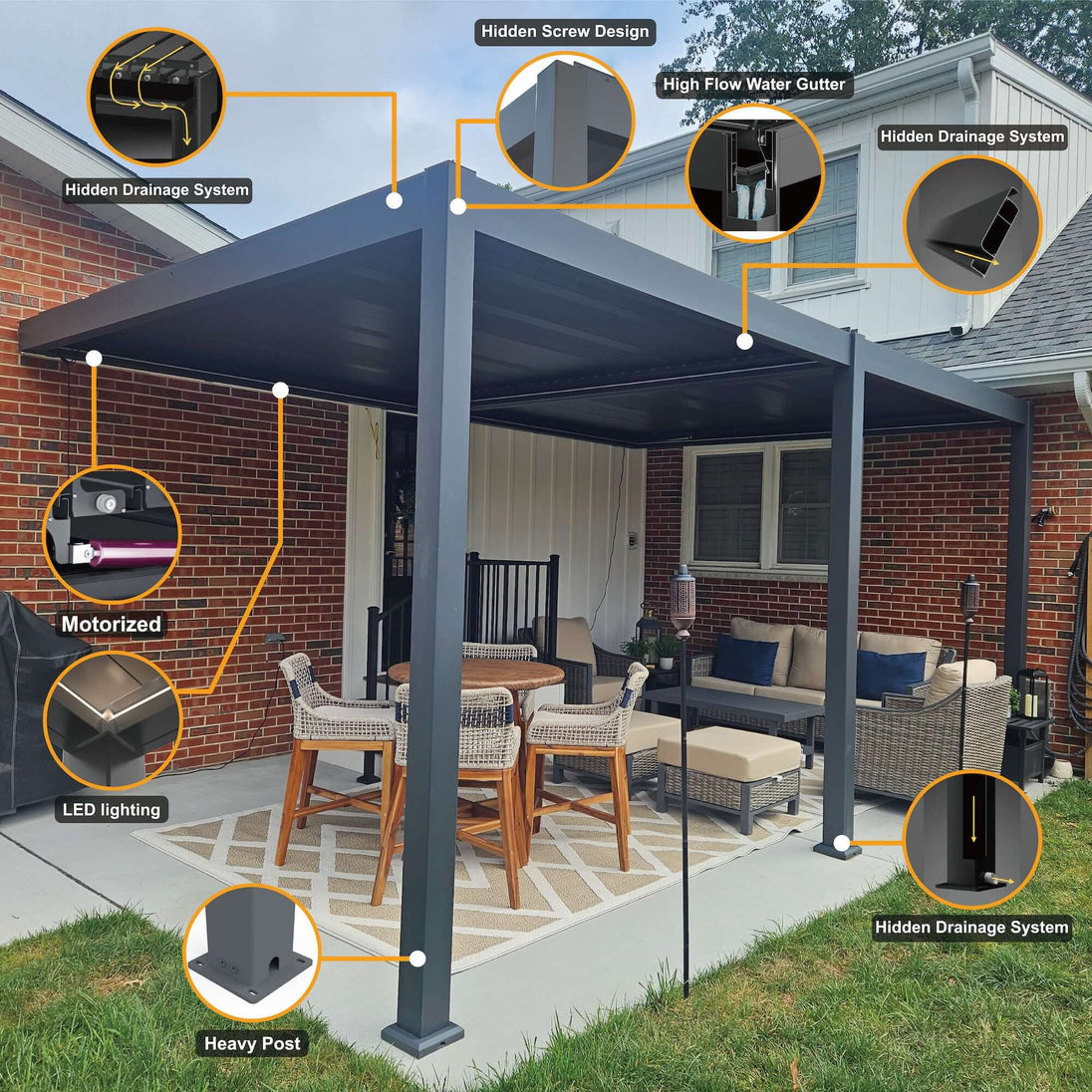

  Motorized with LED
• Rust free aluminum structure with adjustable louvers
• All year round product

• Easy to assemble 4-8 hours (Depending on size)

• Strongest mid-duty system on the market

• Designed in California

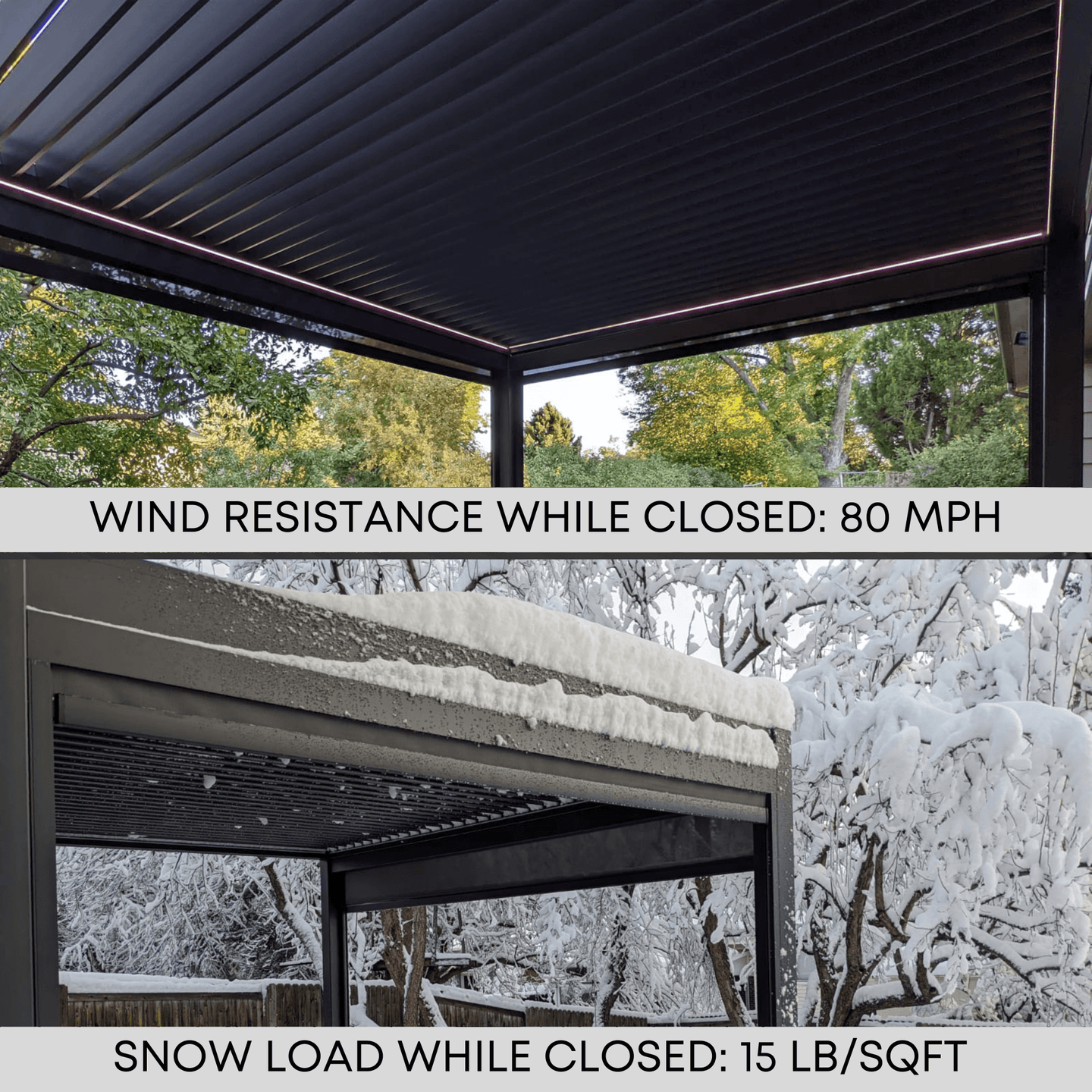

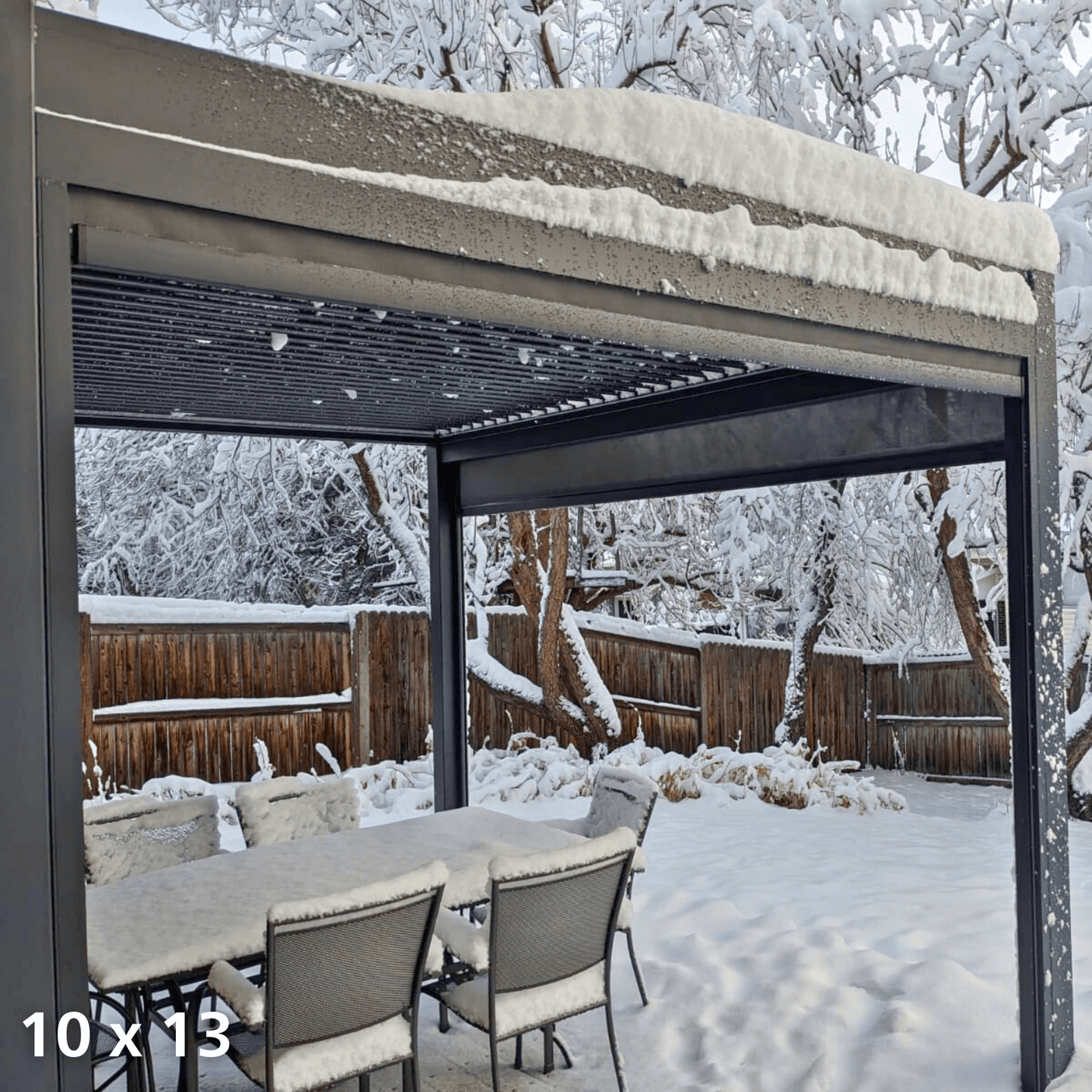

• 15-30 PSF snow rating

• 80-160 MPH wind resistance rating (Hurricane Proof)

• 8ft 1in bottom clearance

• 8ft 8in overall

• 13 ft length span without center post

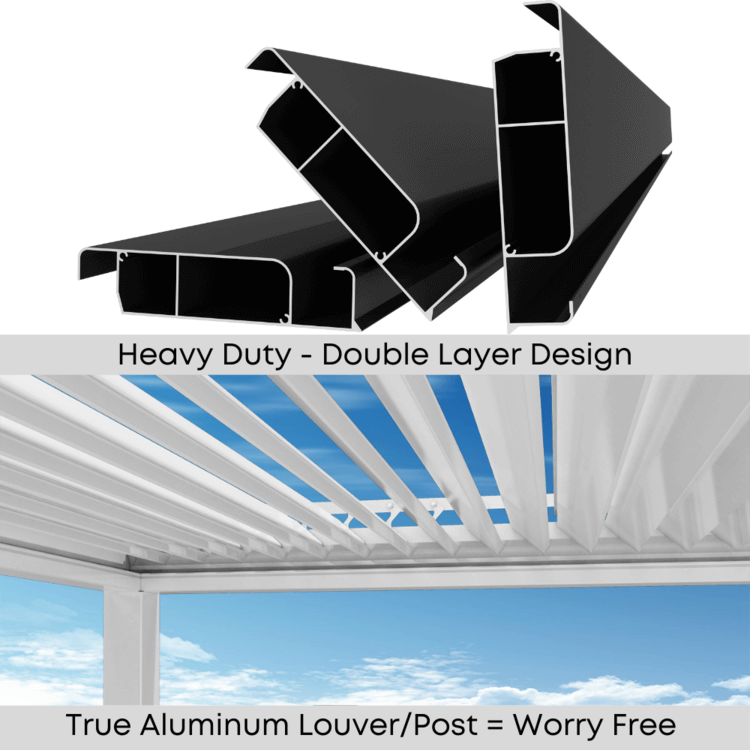

• Double layer louver for extra strength.
• Maintenance Free
• Warranty: 10 Years on the Structure (10 years only on our platform), 2 Years for the electrical related parts

Free Stand Sizes:

• 10' x 10' - Overall dimension: 117"x117"x104" (Inner Dimension 105"x105"x97.5") 400 lbs (Packaging: 4 Cartons on a pallet 120x48x19, 560LB include pallet)

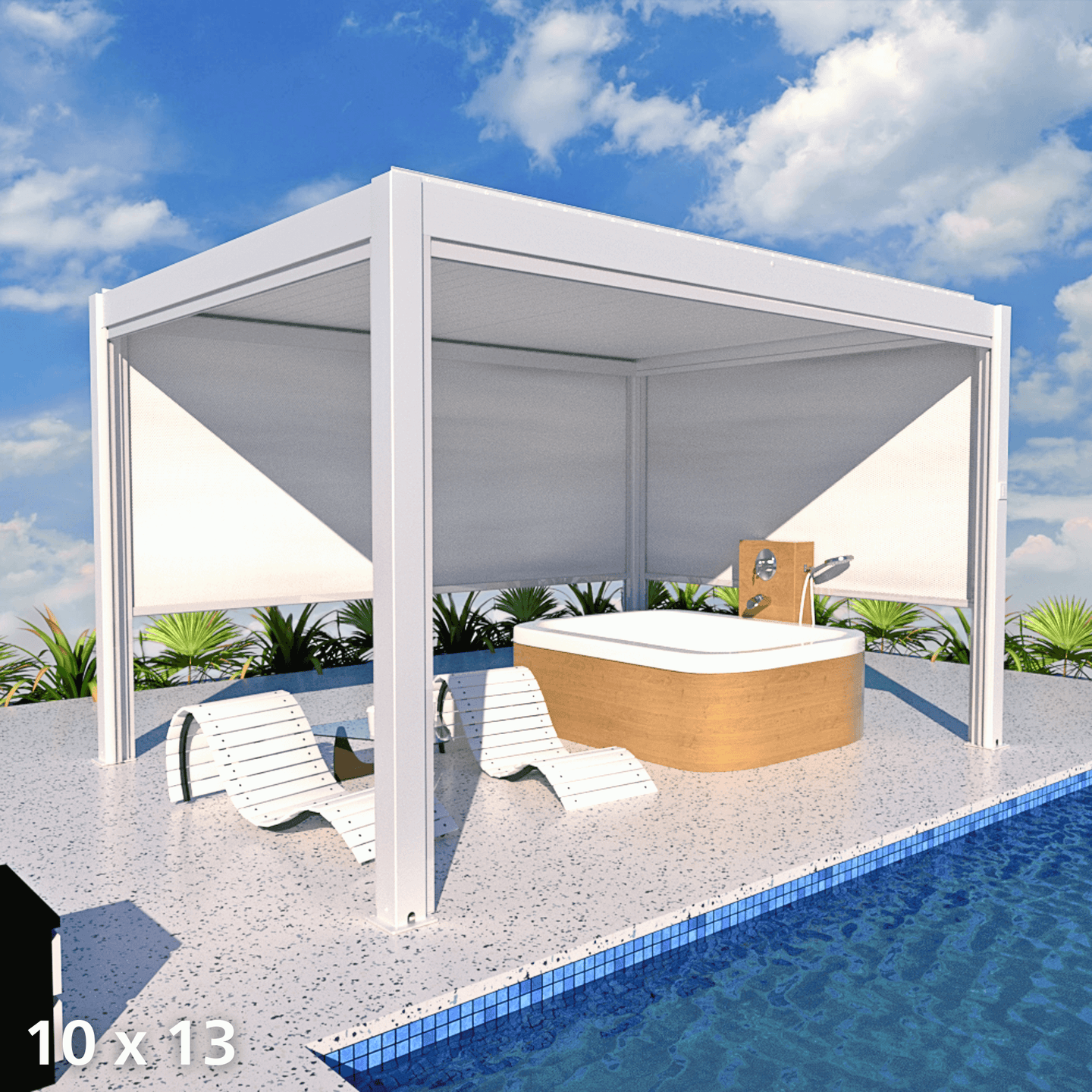

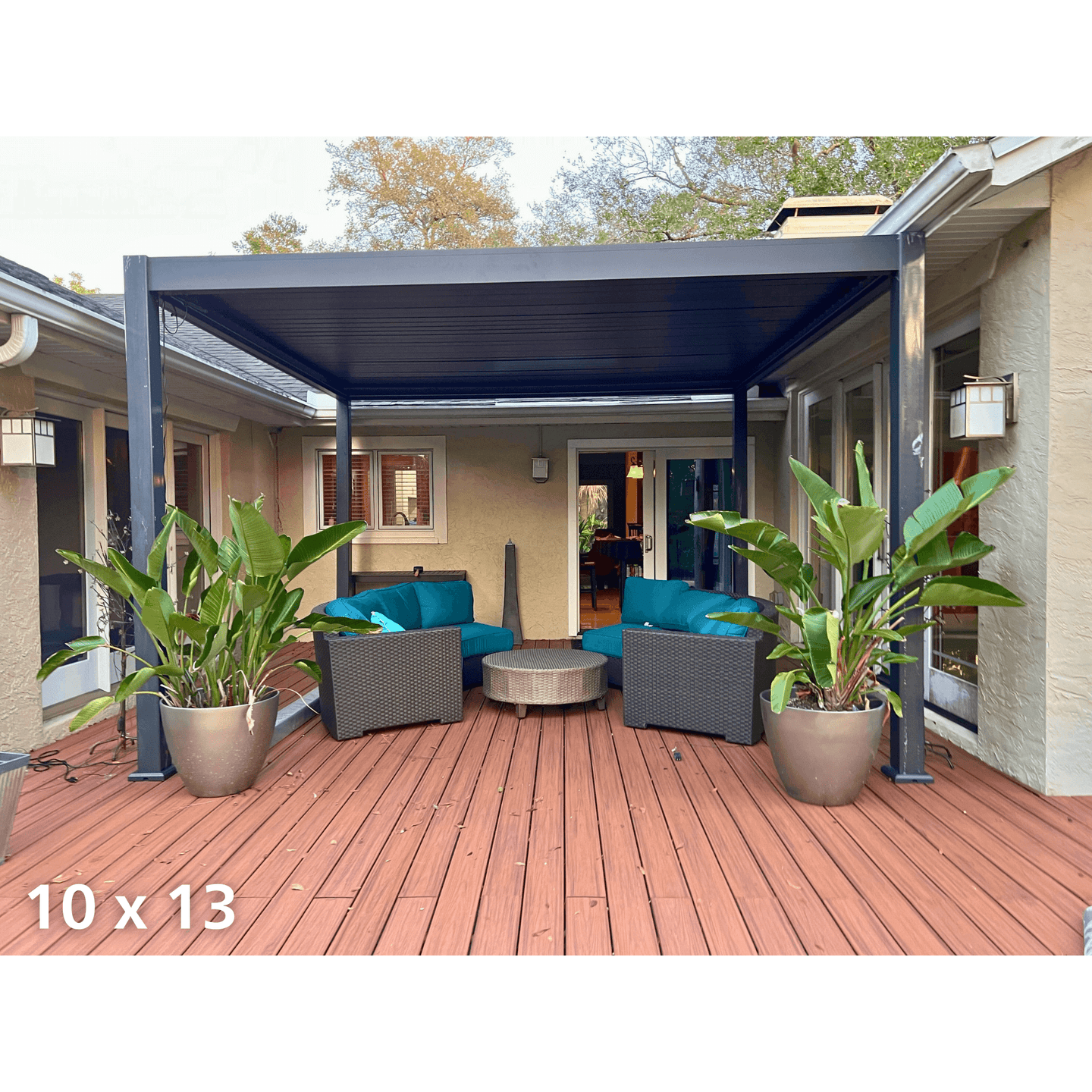

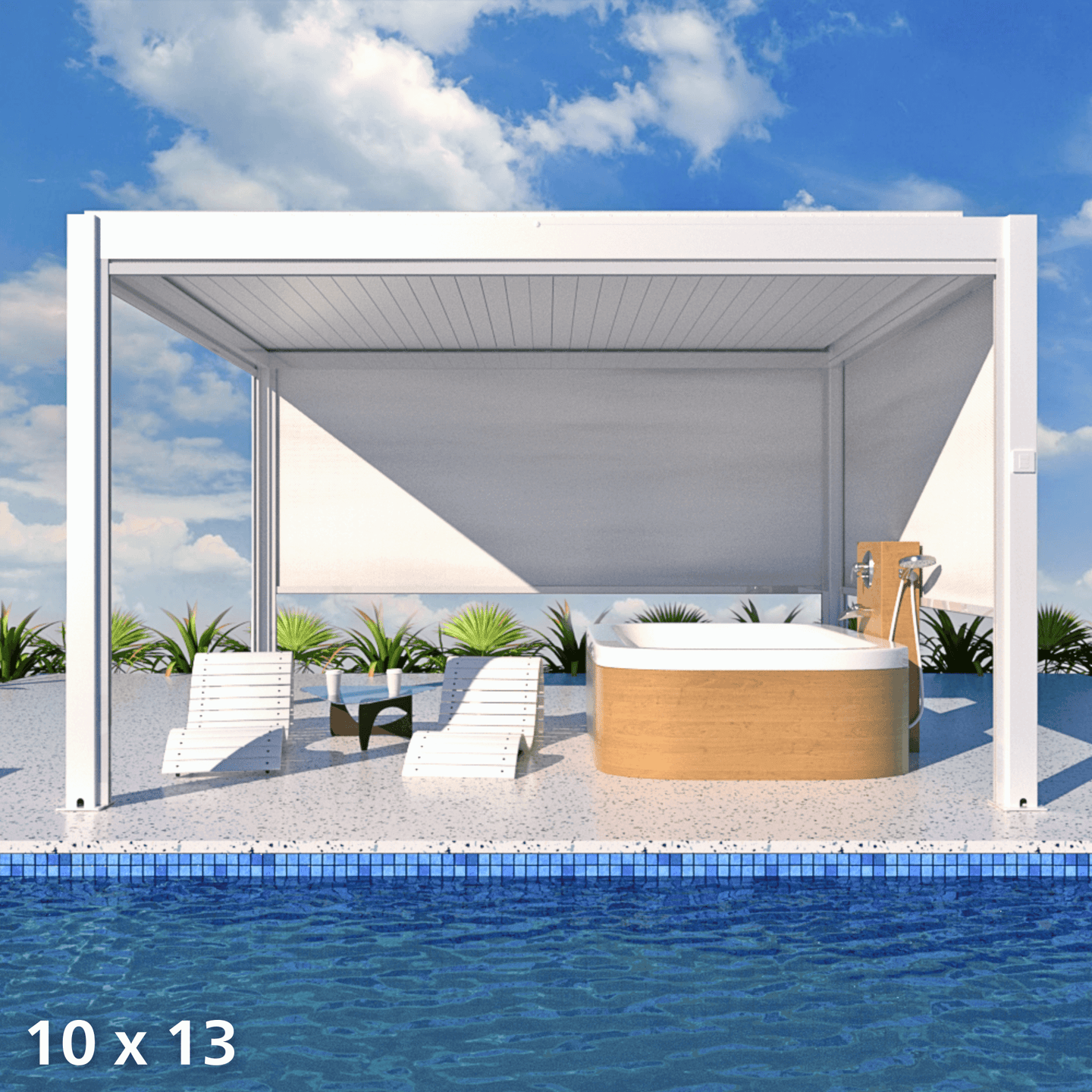

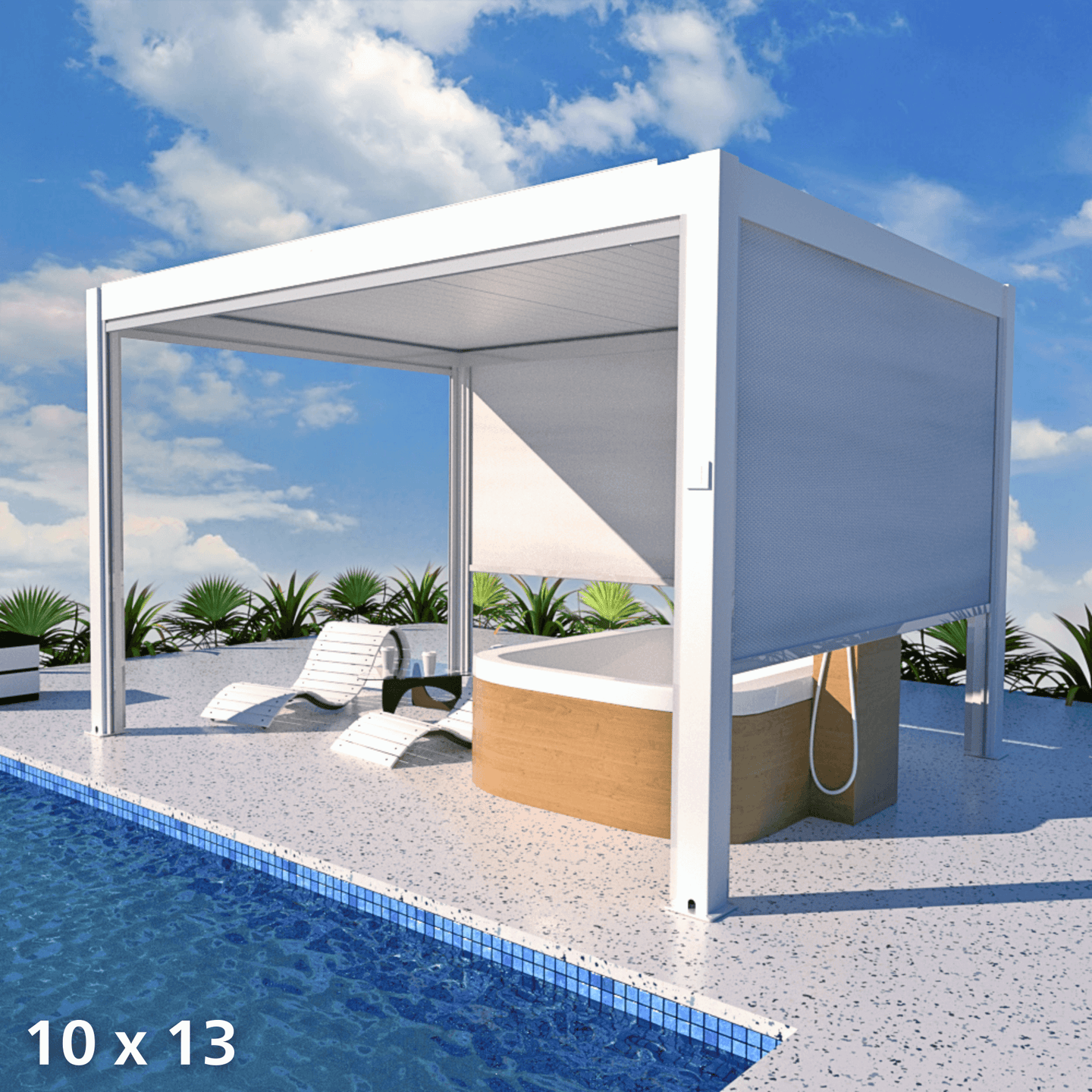

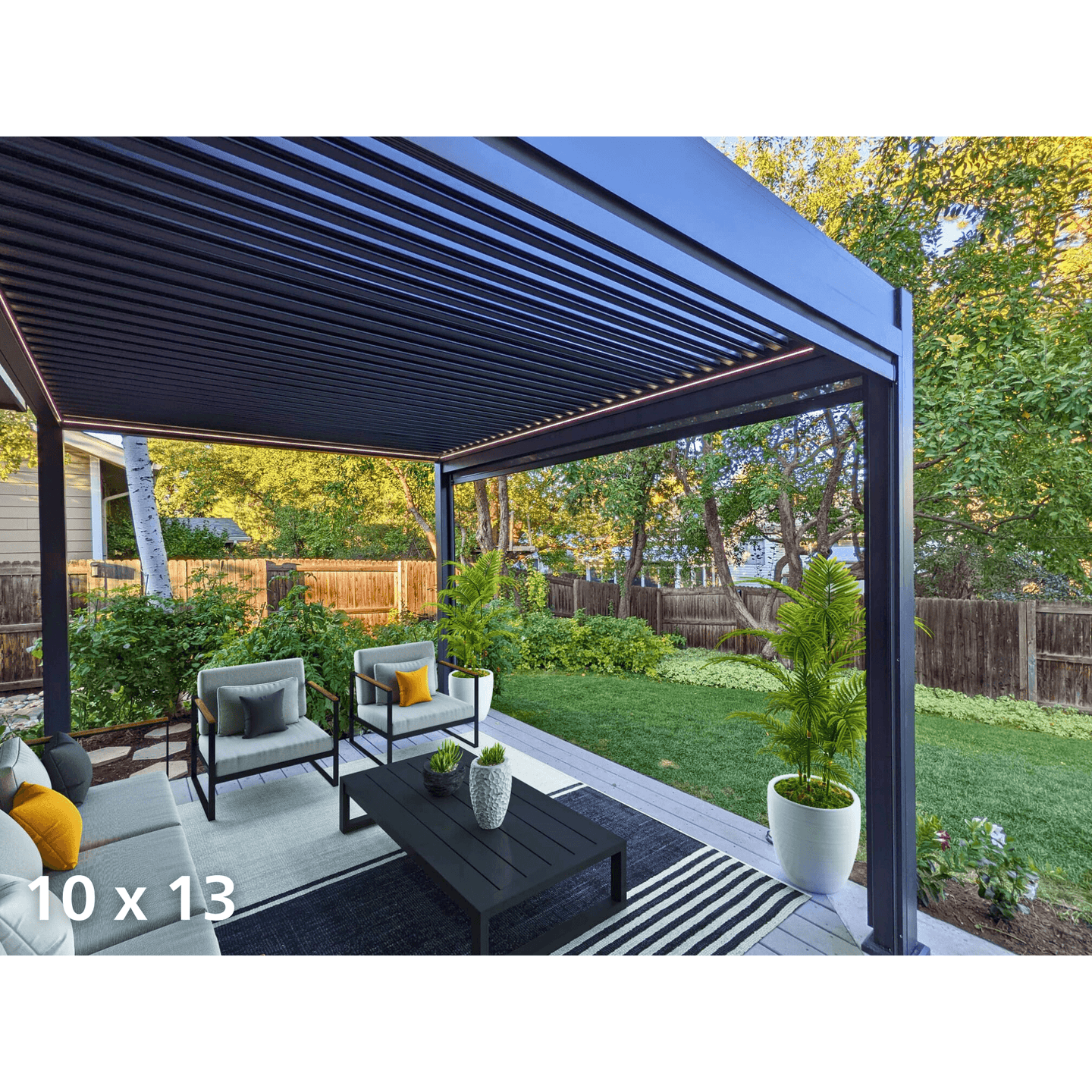

• 10' x 13' - Overall dimension: 117"x157"x104" (Inner Dimension 145"x105"x97.5") 500 lbs (Packaging: 4 Cartons on a pallet 160x48x19, 680LB include pallet)

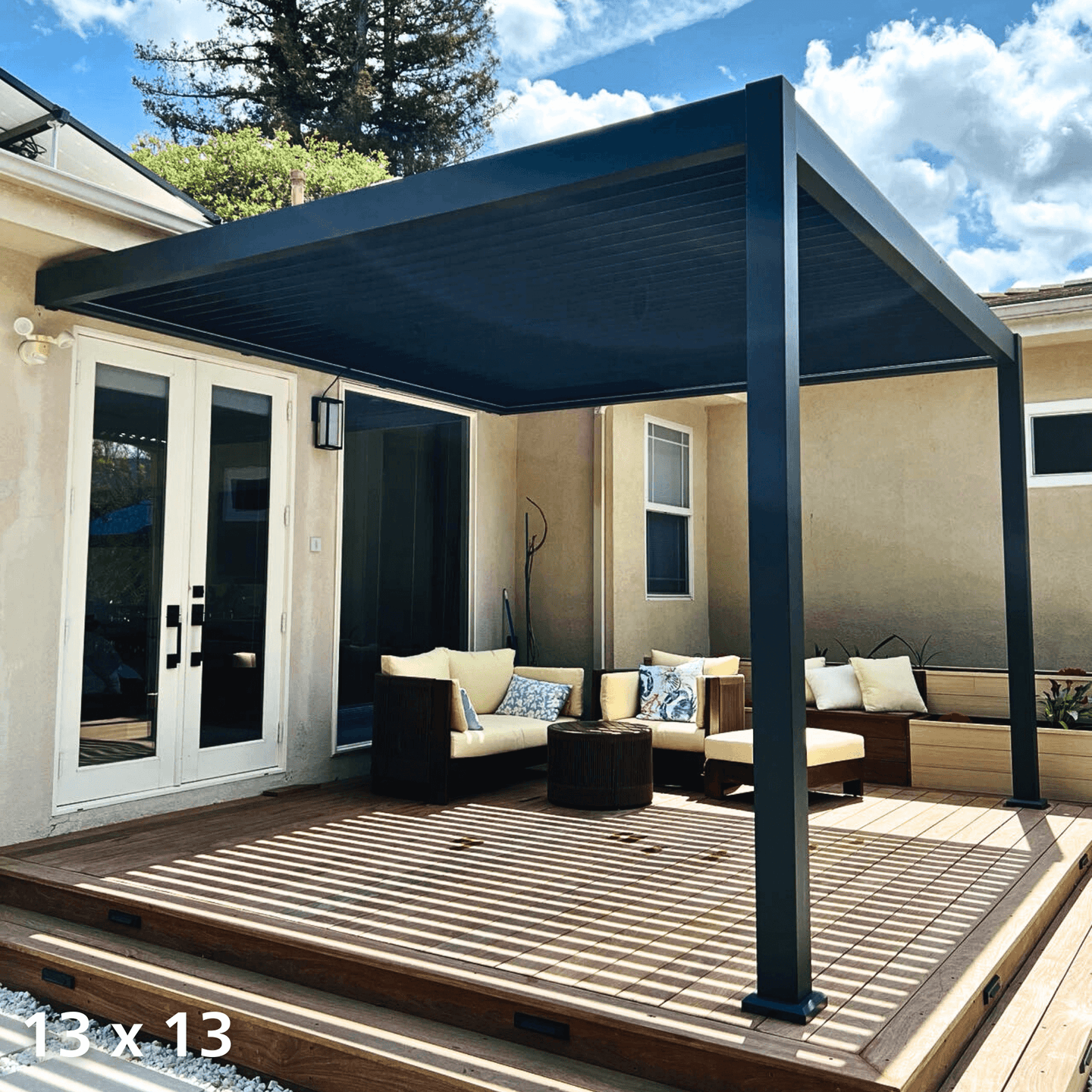

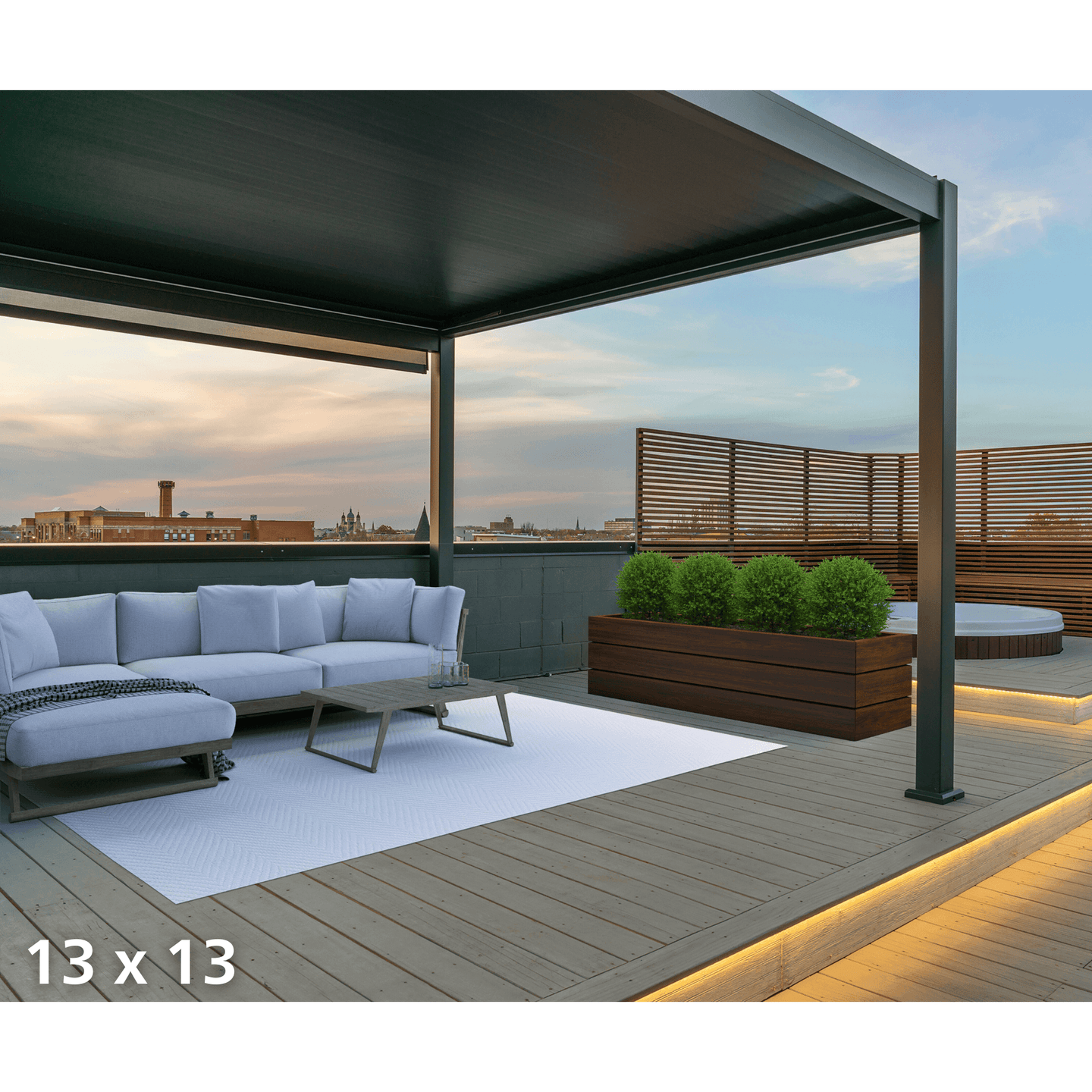

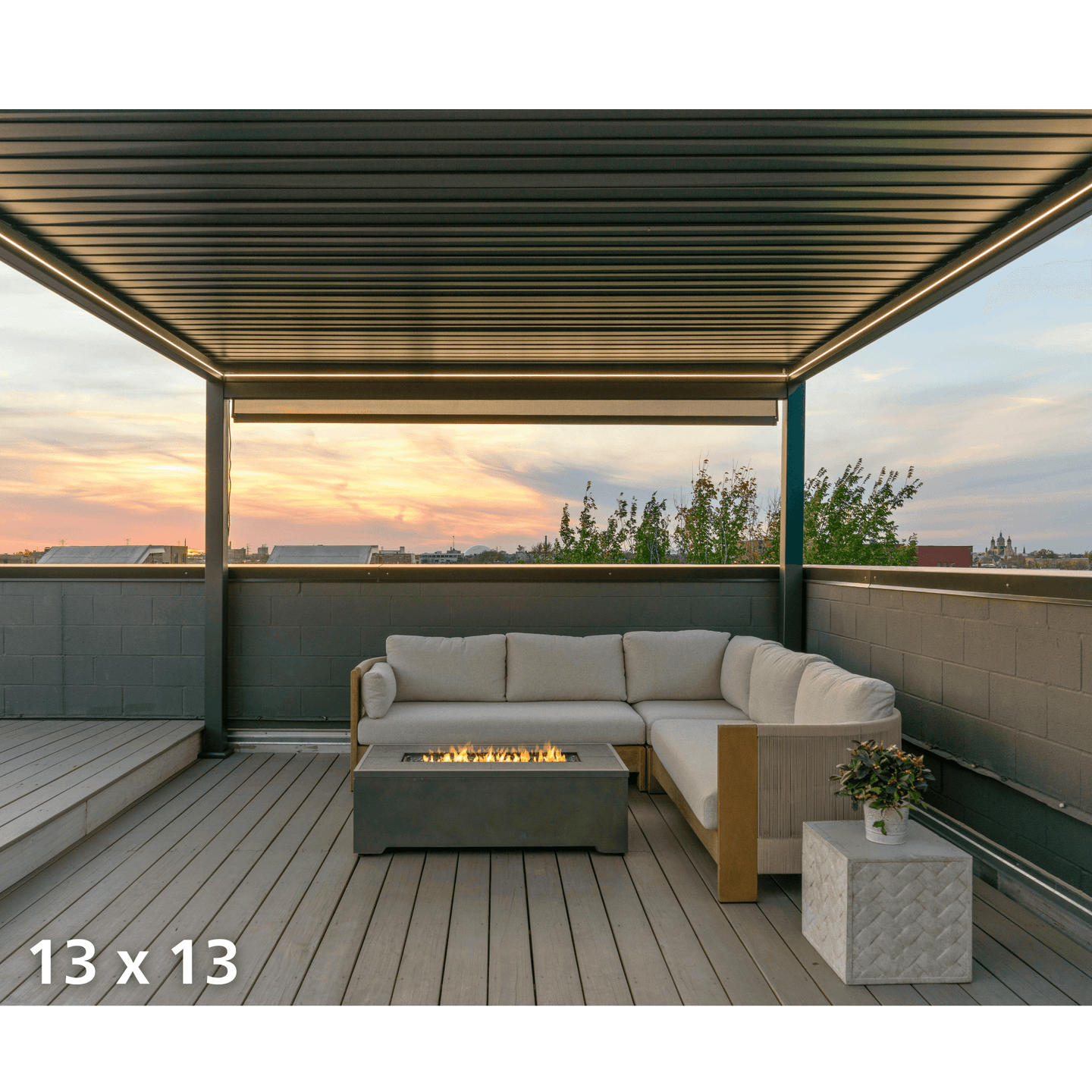

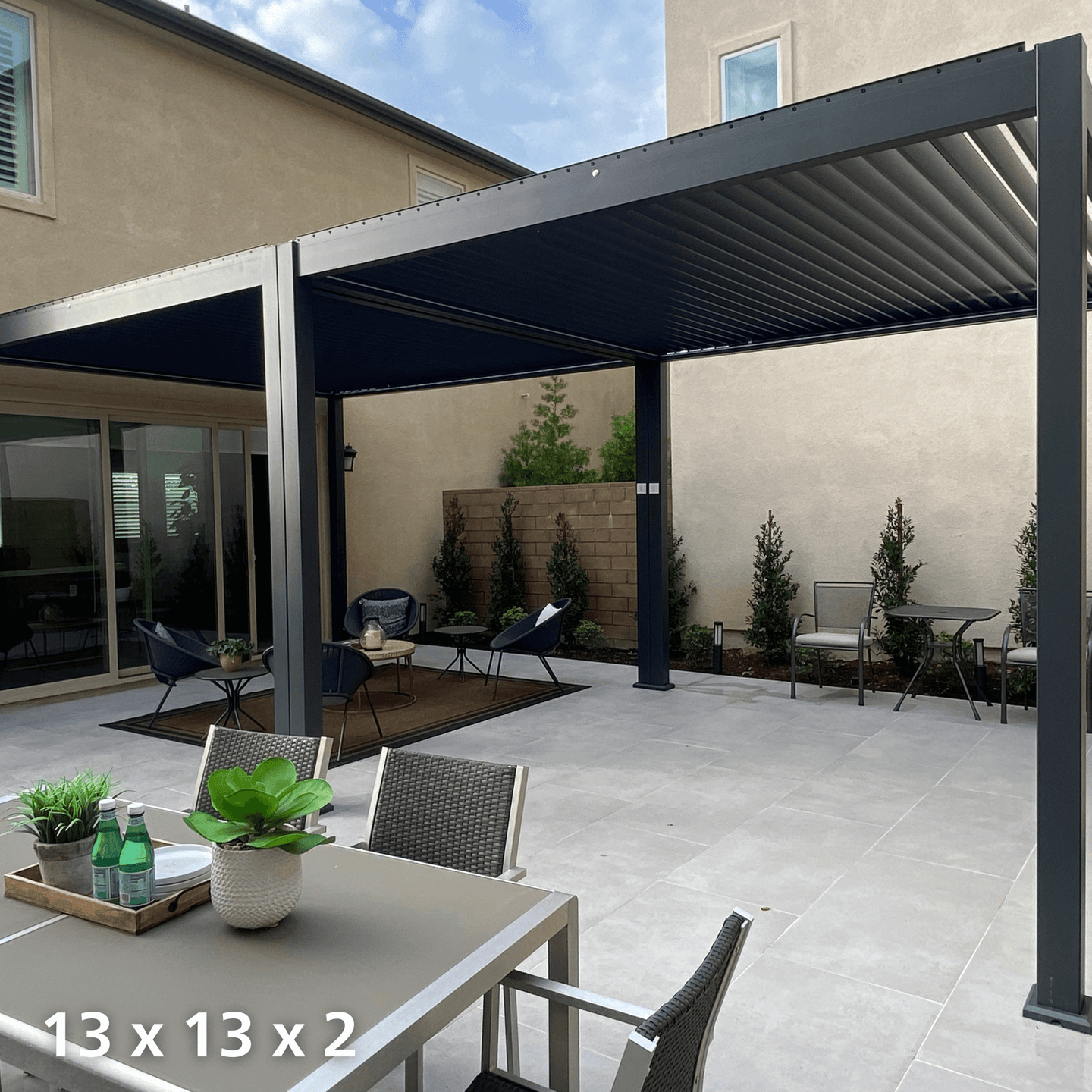

• 13' x 13' - Overall dimension: 157"x157"x104" (Inner Dimension 146"x146"x97.5") 600 lbs (Packaging: 4 Cartons on a pallet, 160x48x19, 760LB include pallet)

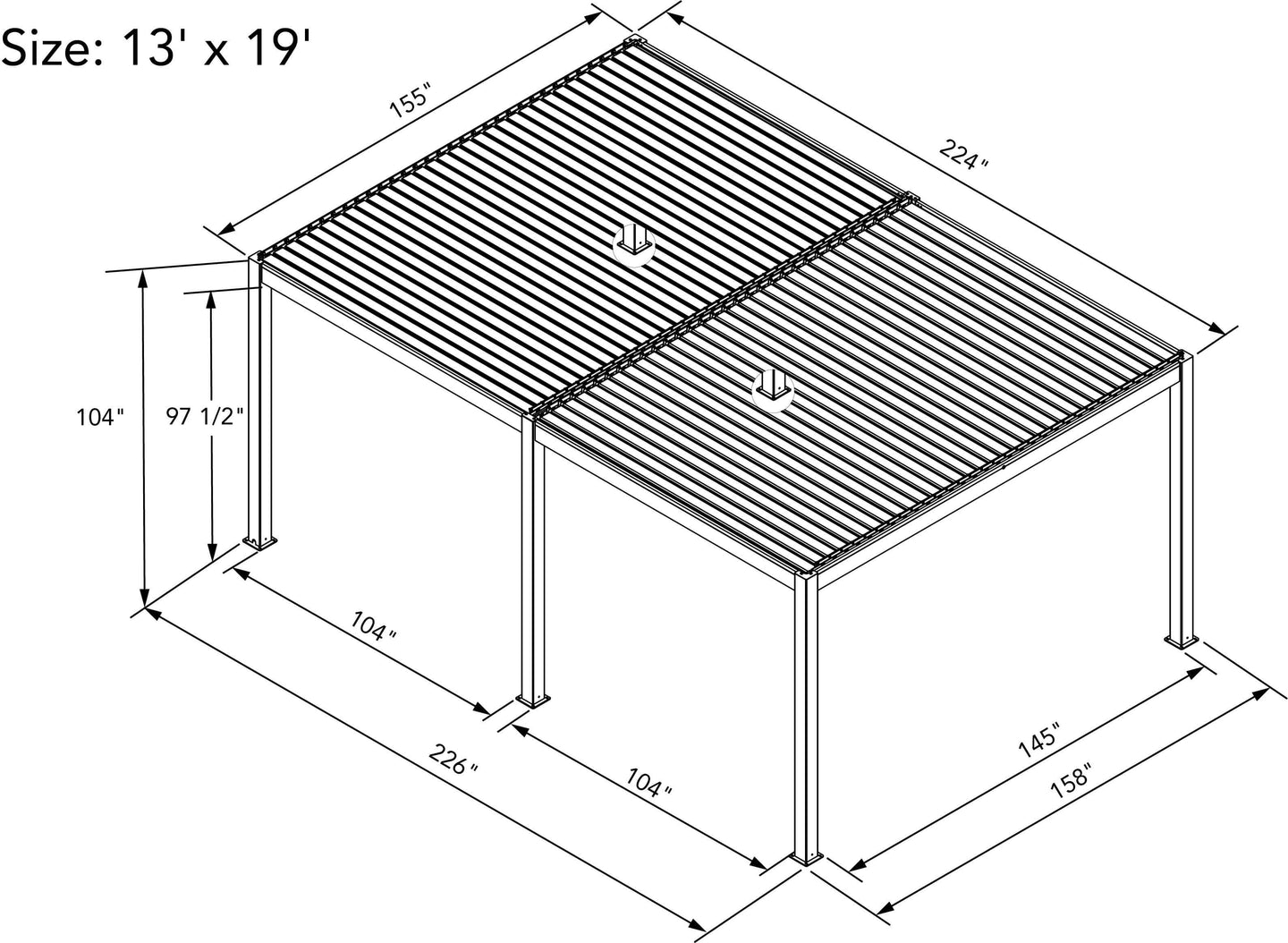

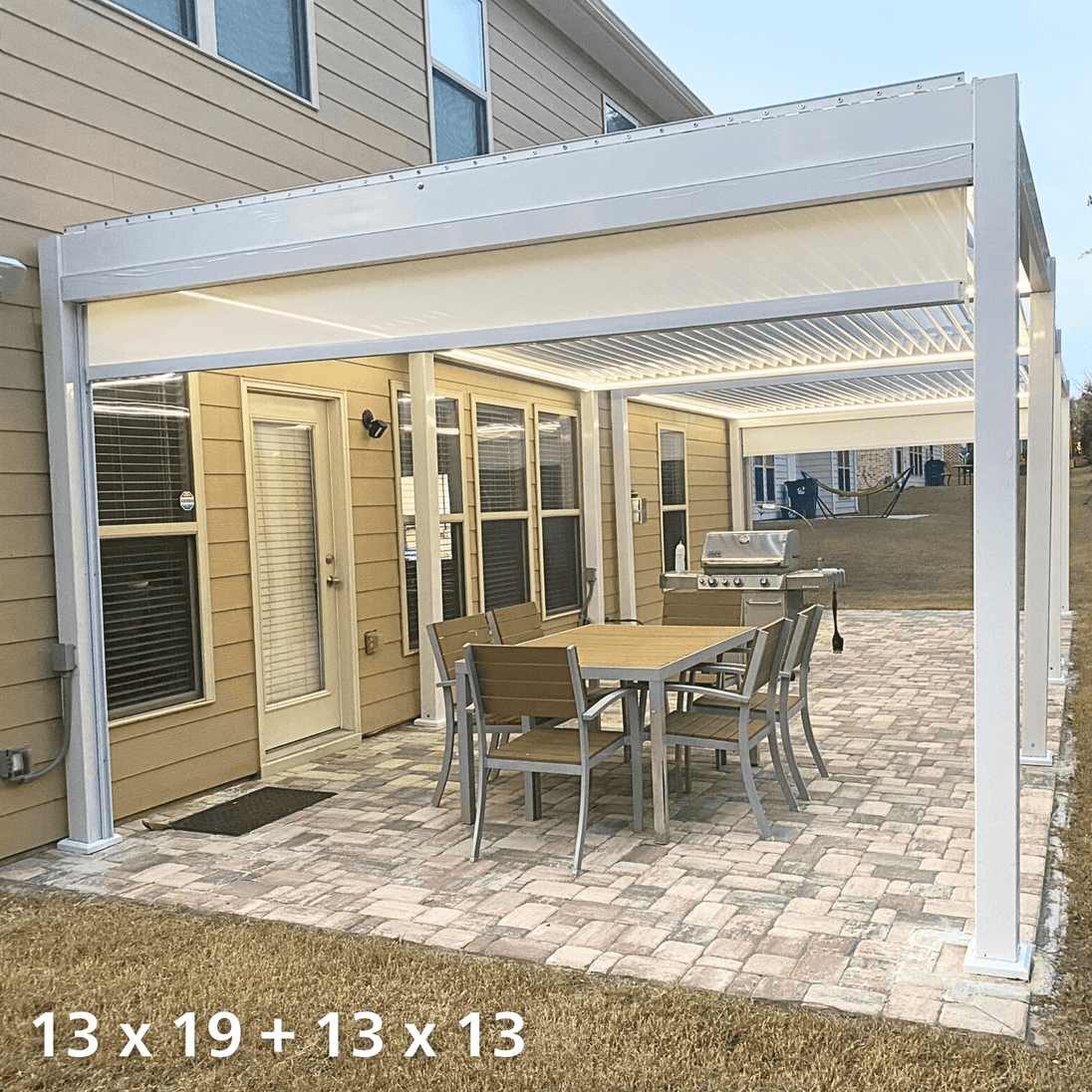

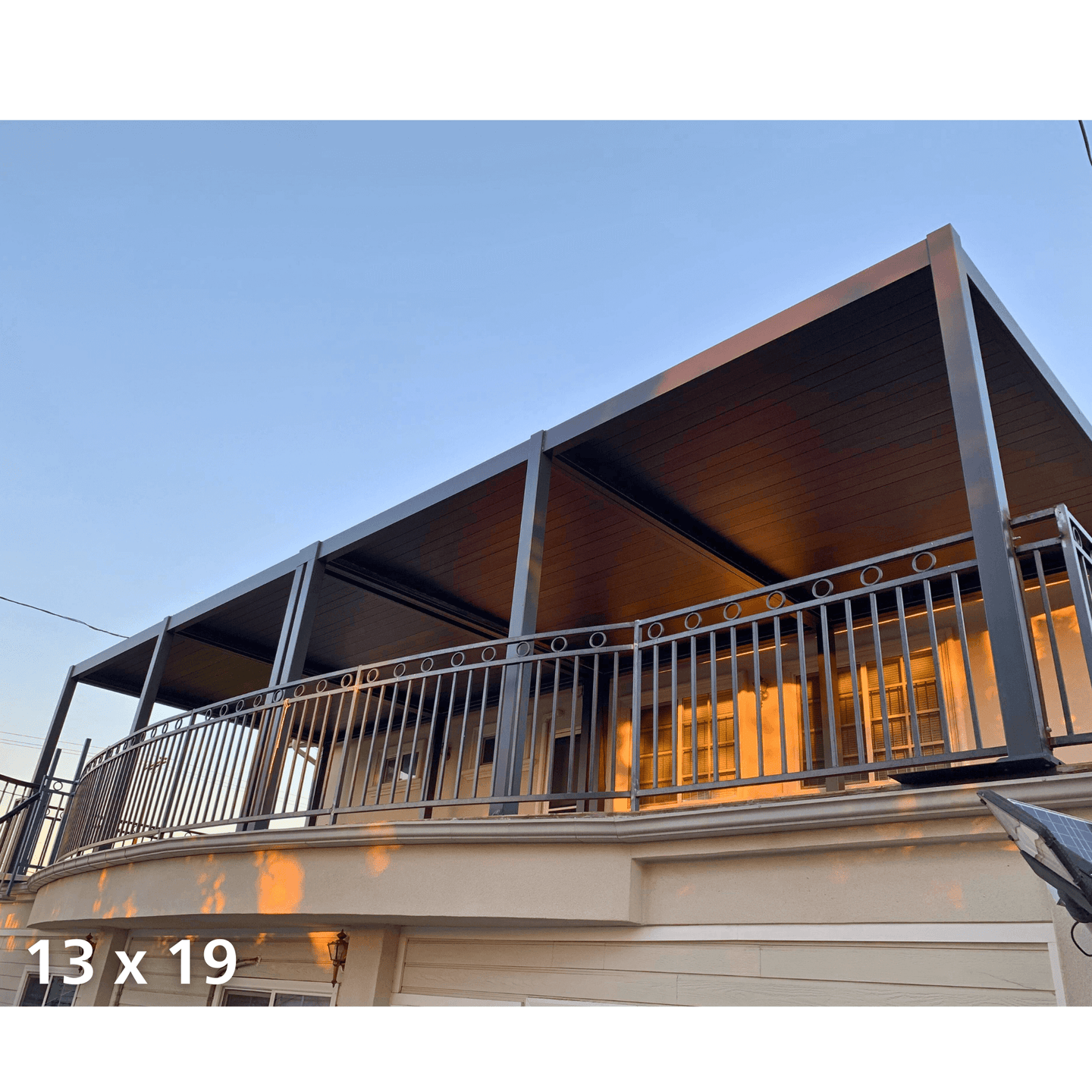

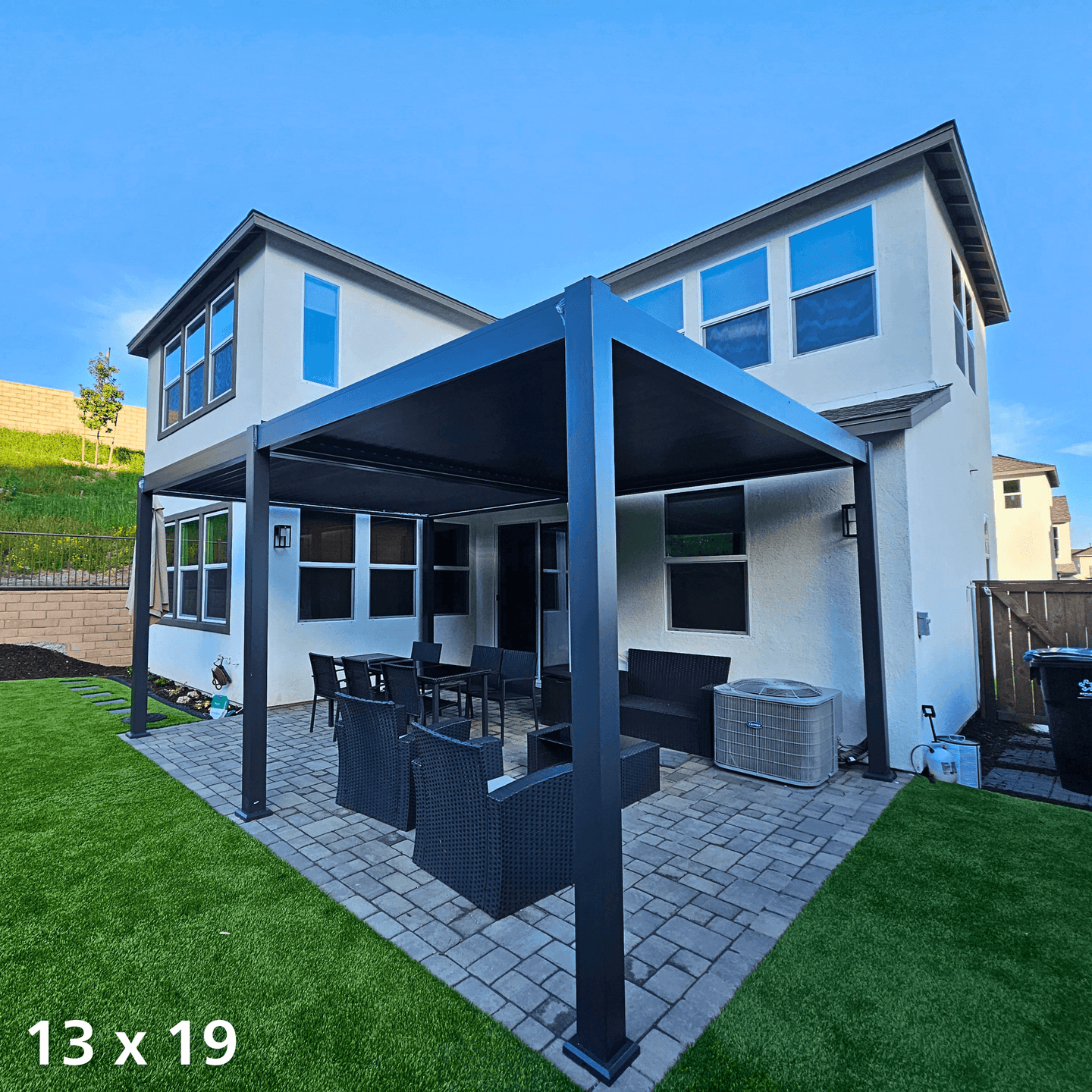

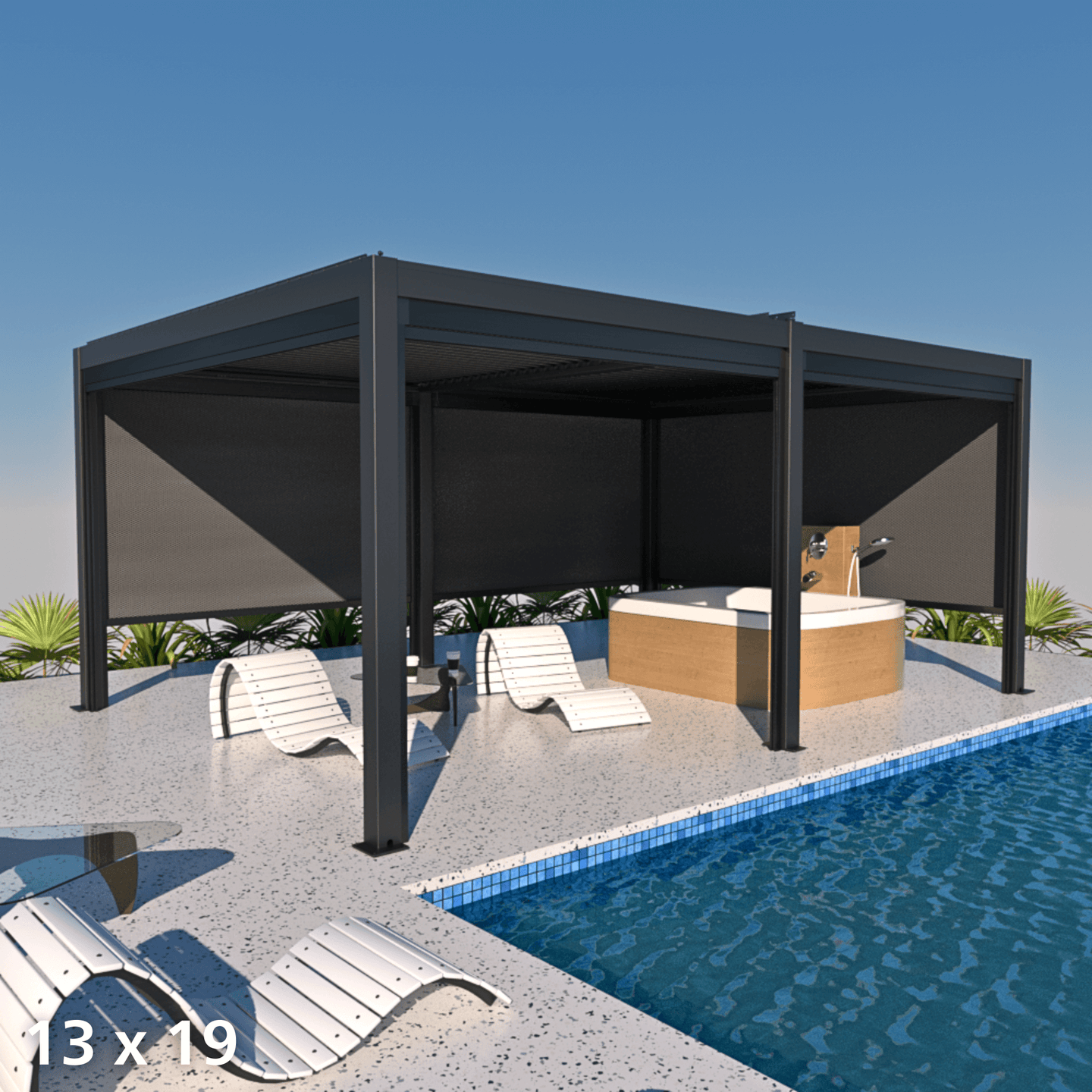

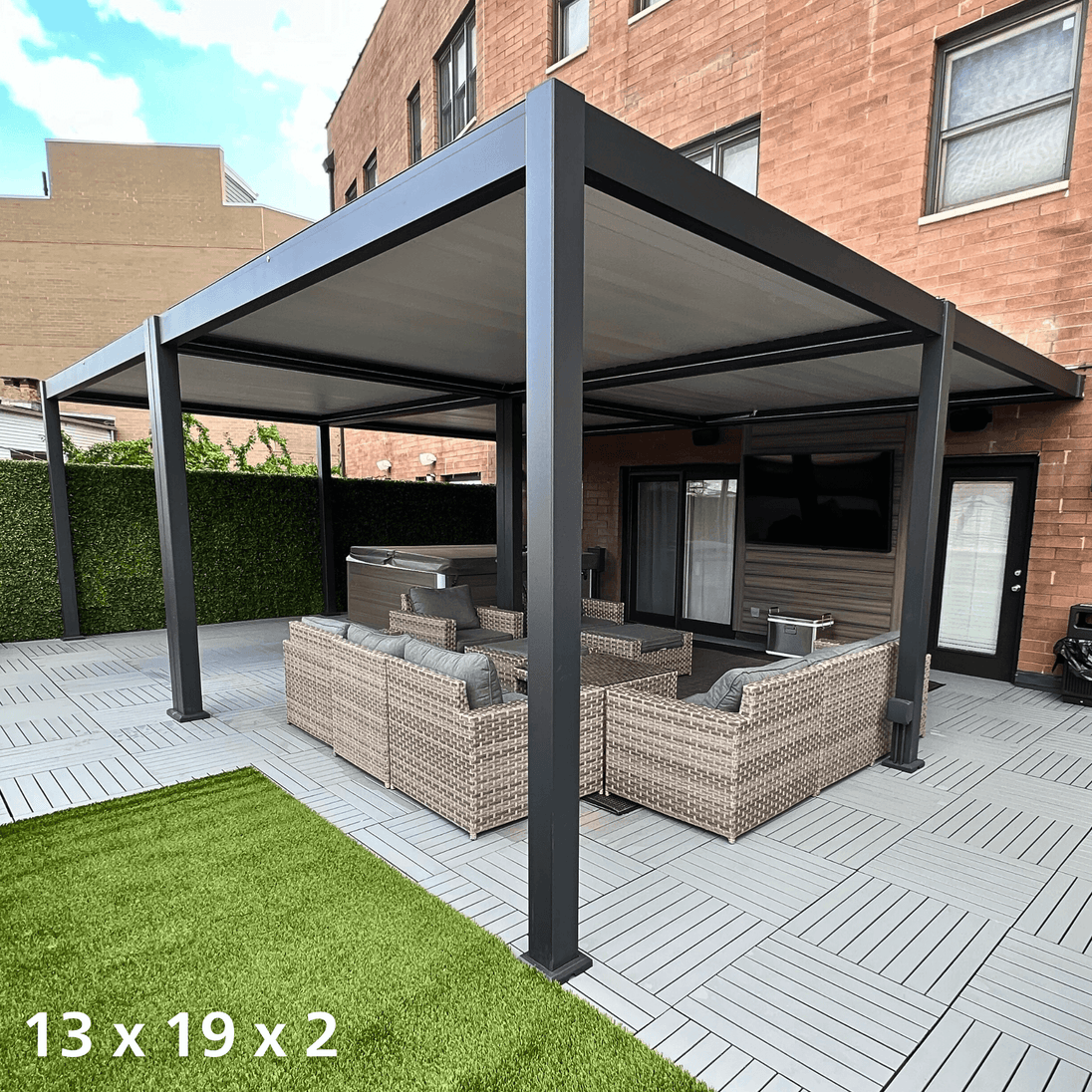

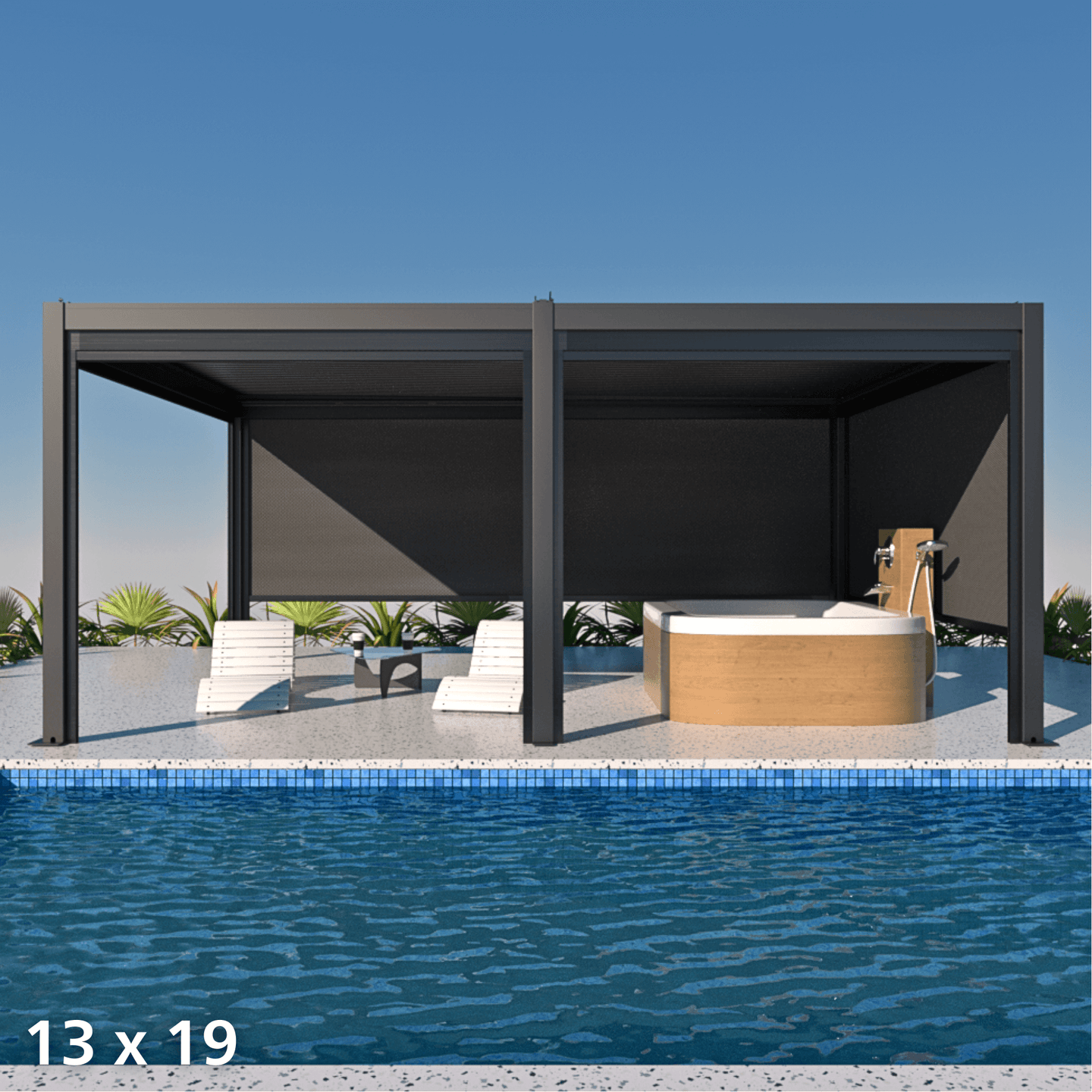

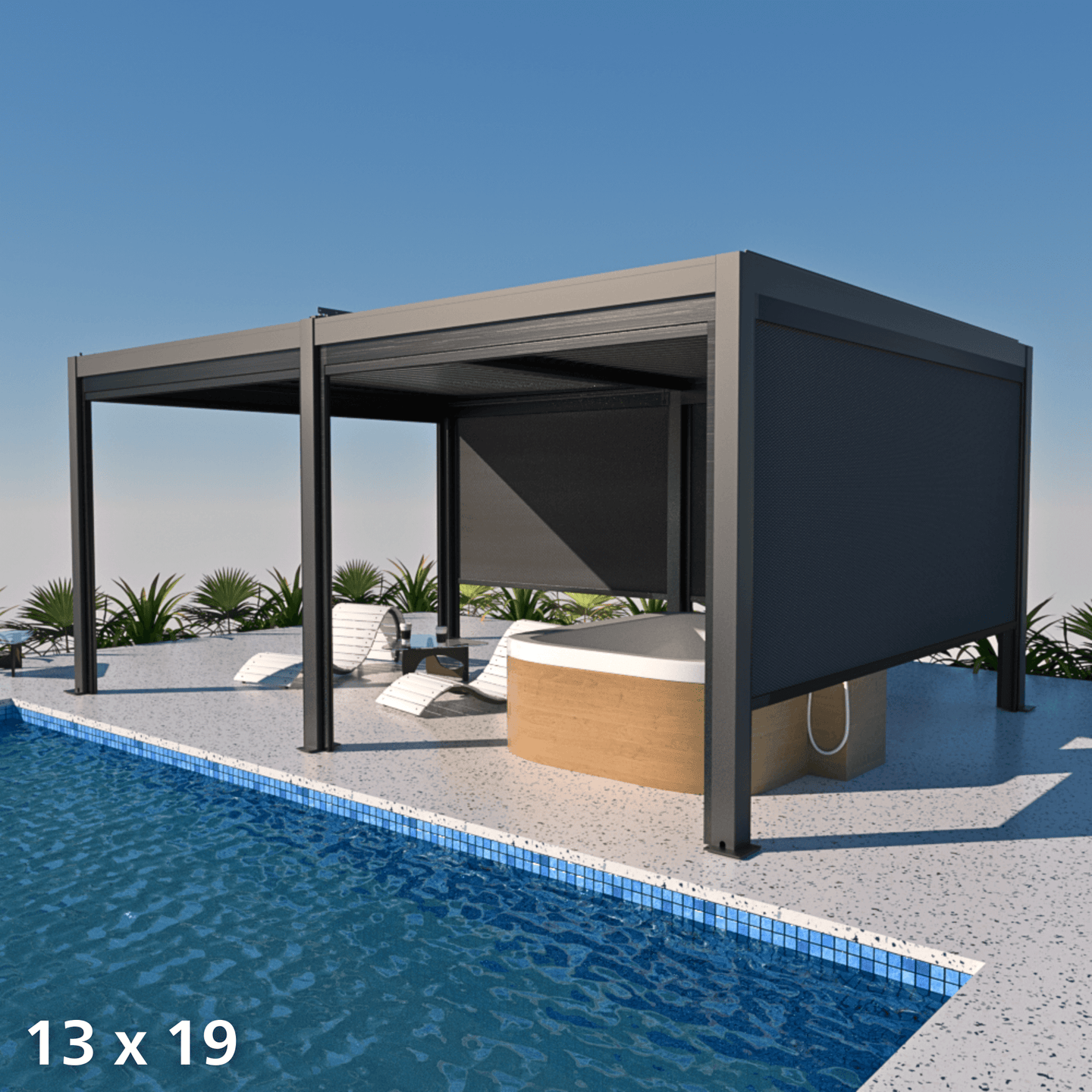

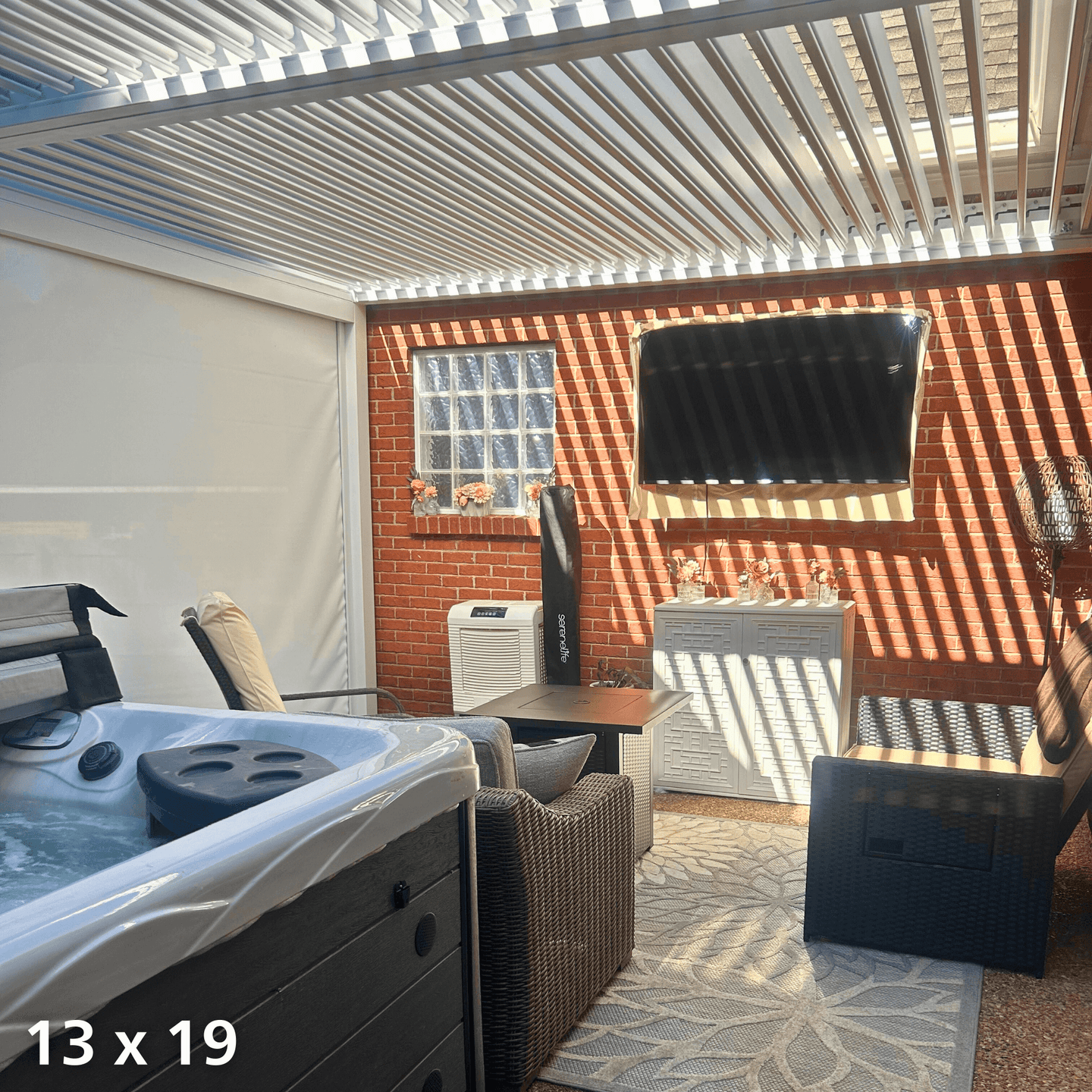

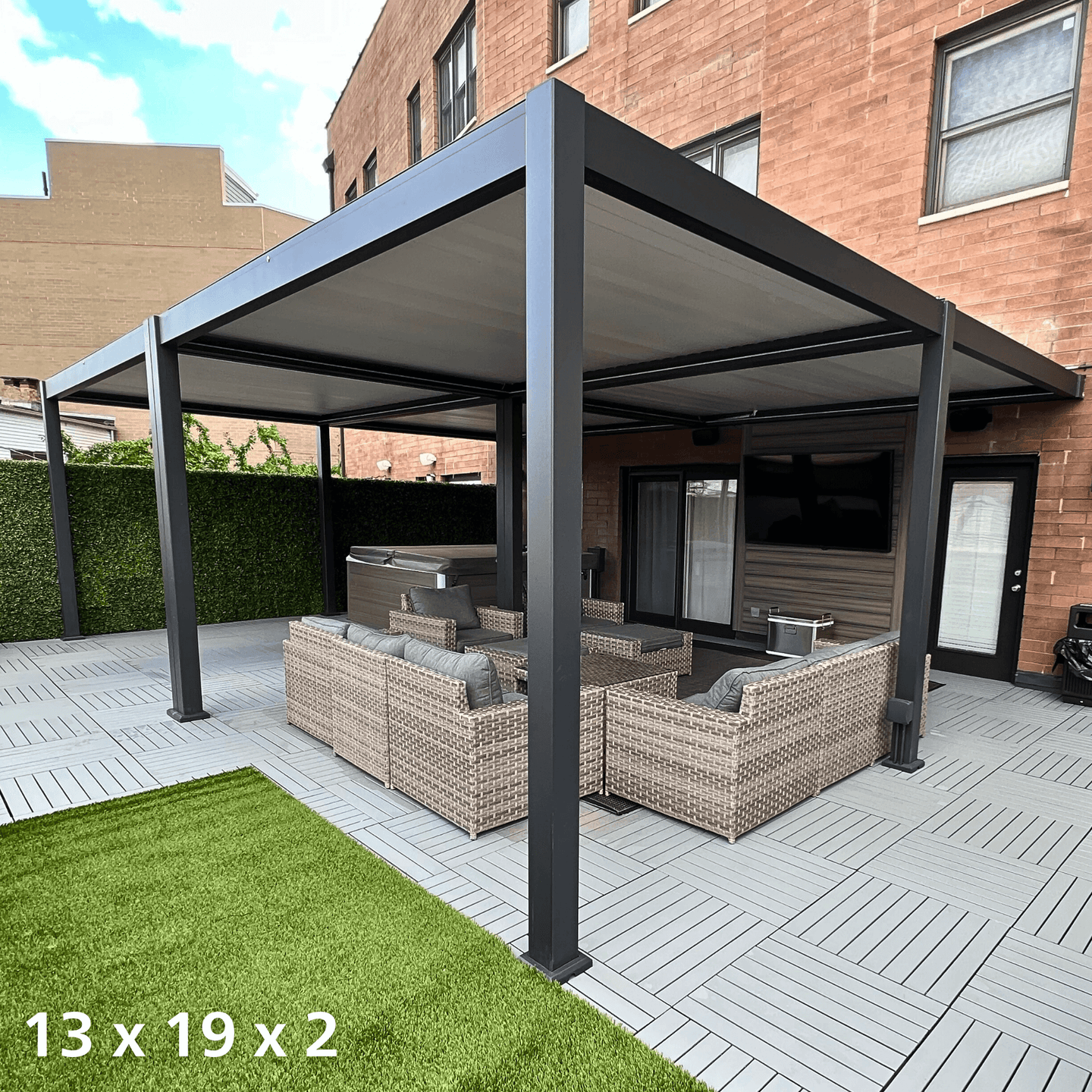

• 13' x 19' - Overall dimension: 155"x224"x104" (Inner Dimensions 145"x214"x97.5") 960 lbs (Packaging: 6 Cartons on a pallet, 160x48x30, 1120LB include pallet)

Wall Mount Sizes:

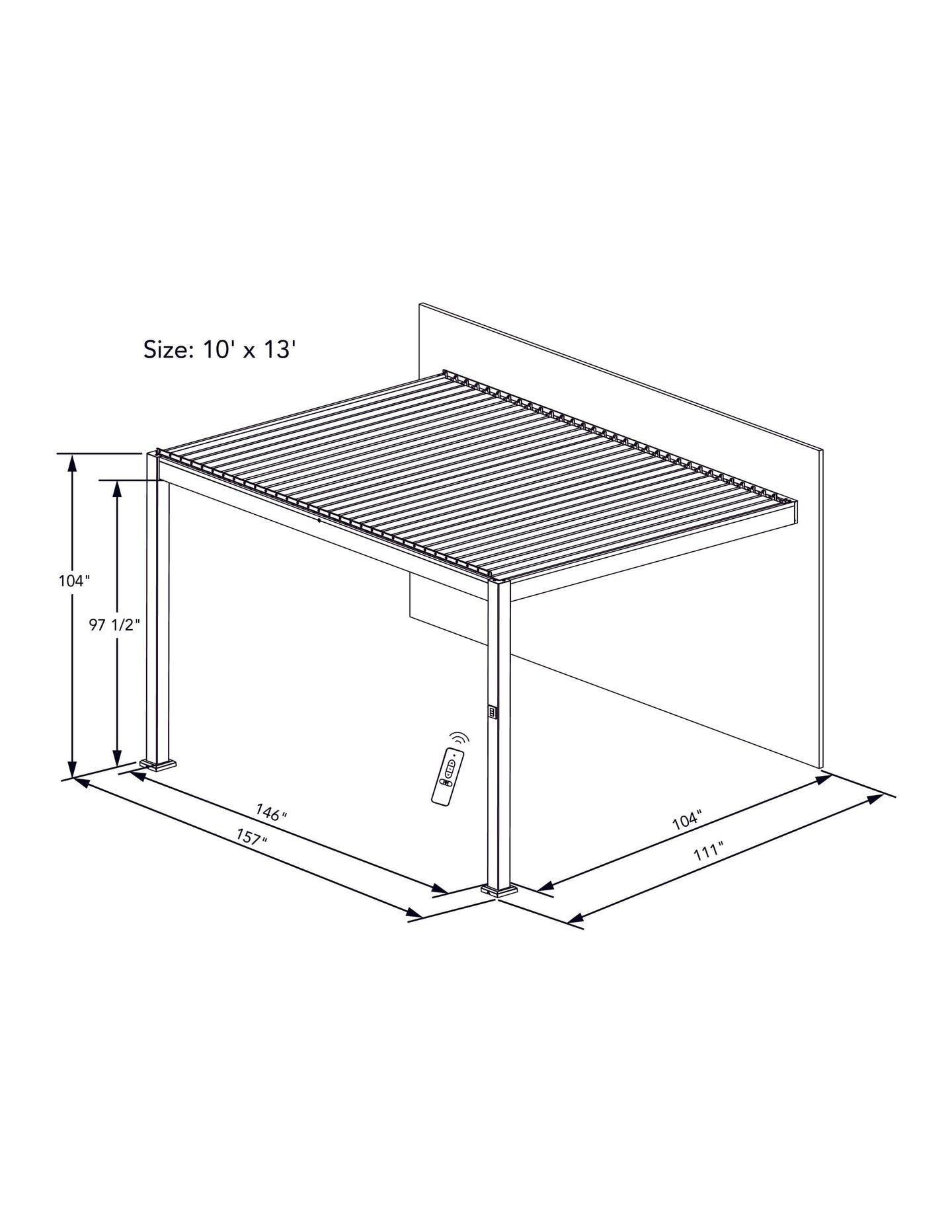

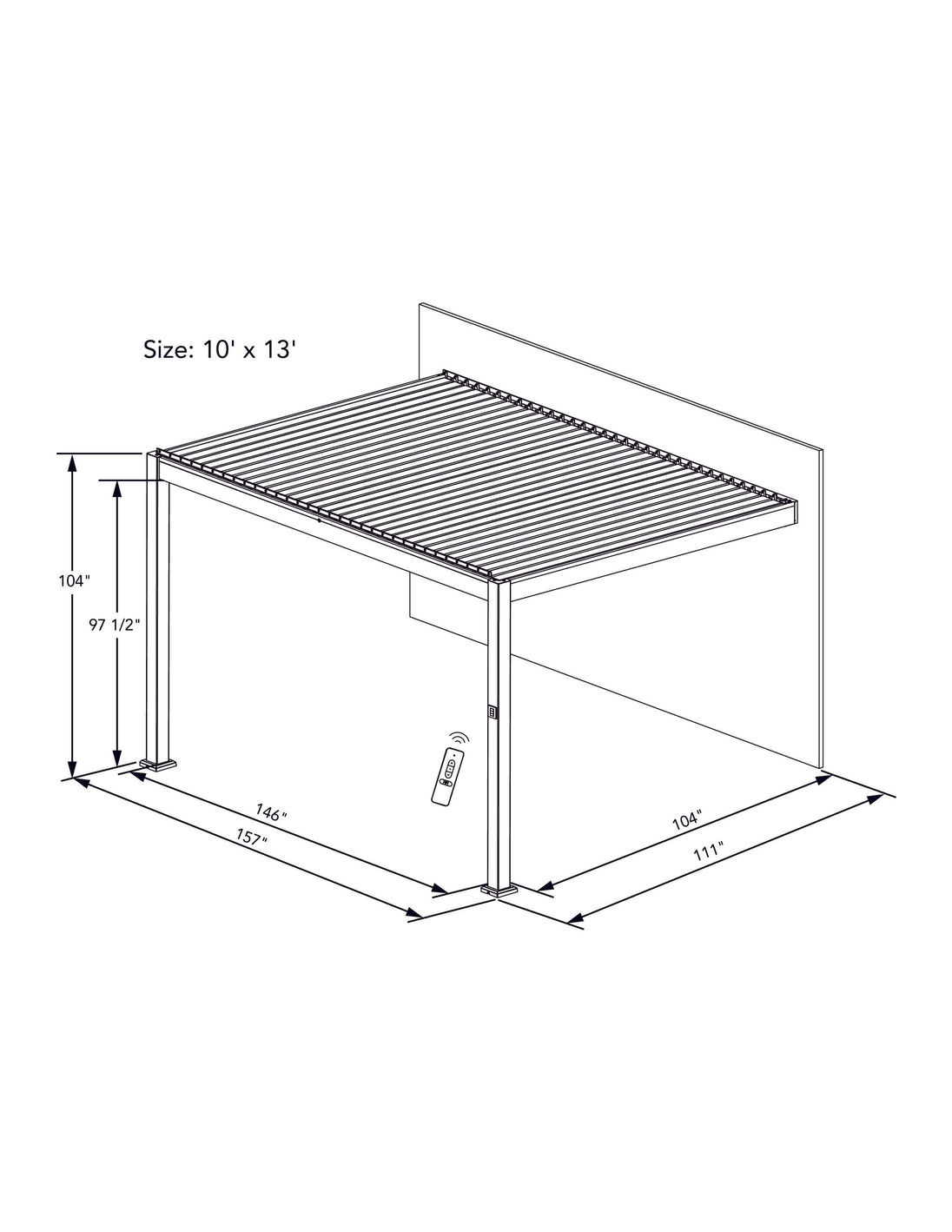

• 10' x 13': Dimensions: Outer 111"x157"x104" (Inner Dimension 104"x146"x97.5") - 4 Boxes, 500LB (Packaging: 4 Cartons on a pallet 160x48x19, 680LB include pallet)
• 13' x 13': Dimensions: Outer 152"x157"x104" (Inner Dimension 146"x146"x97.5") - 4 Boxes, 600LB (Packaging: 4 Cartons on a pallet, 160x48x19, 760LB include pallet)

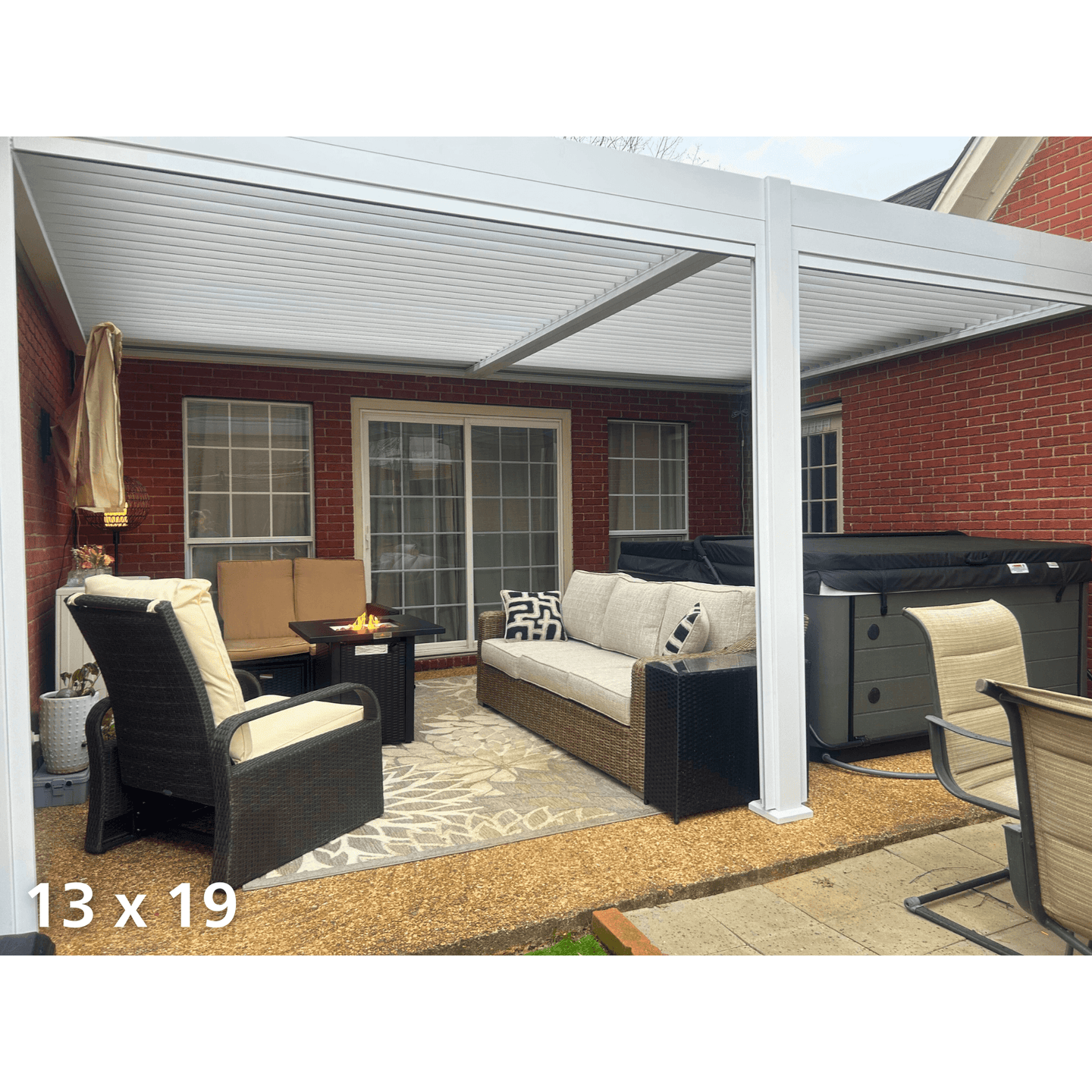

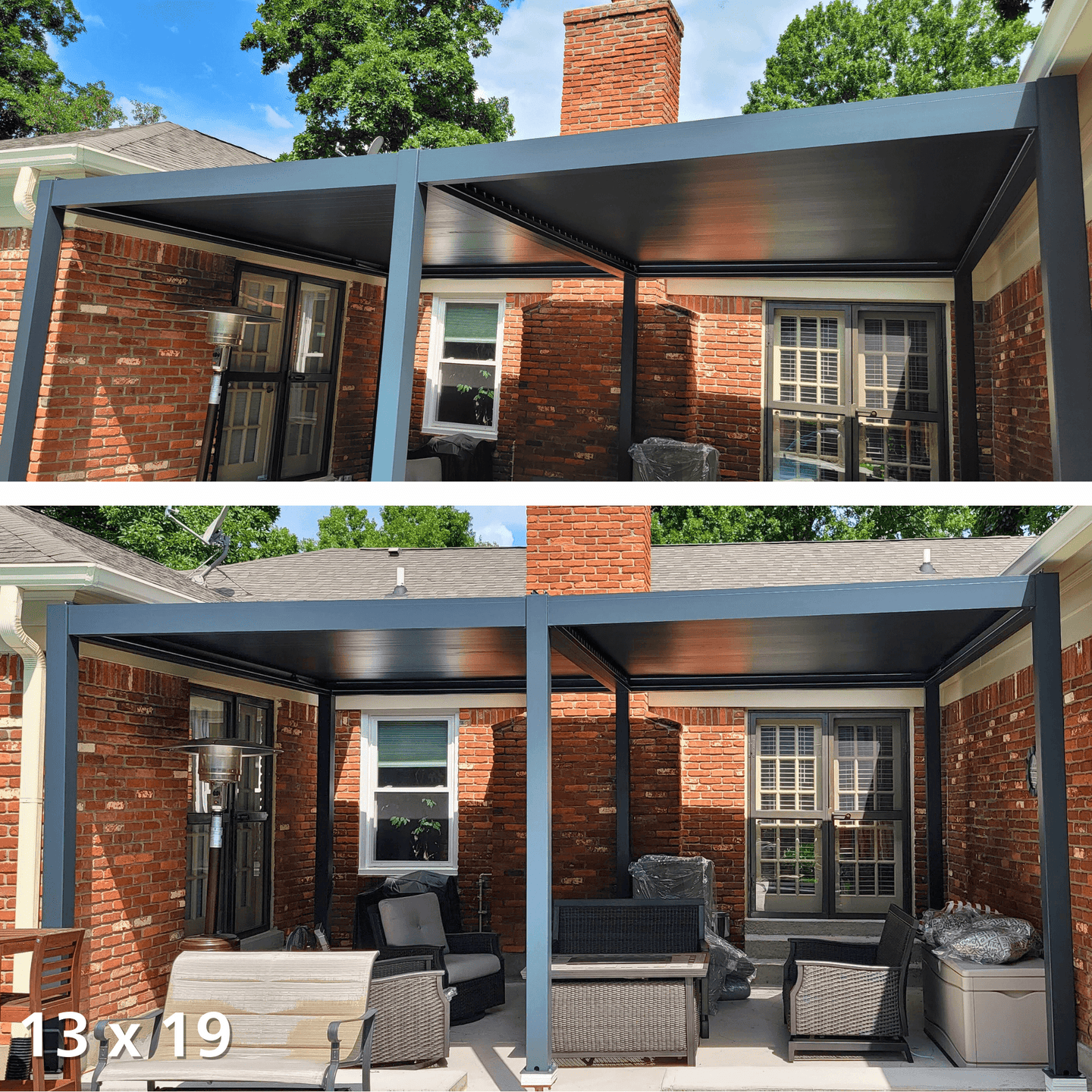

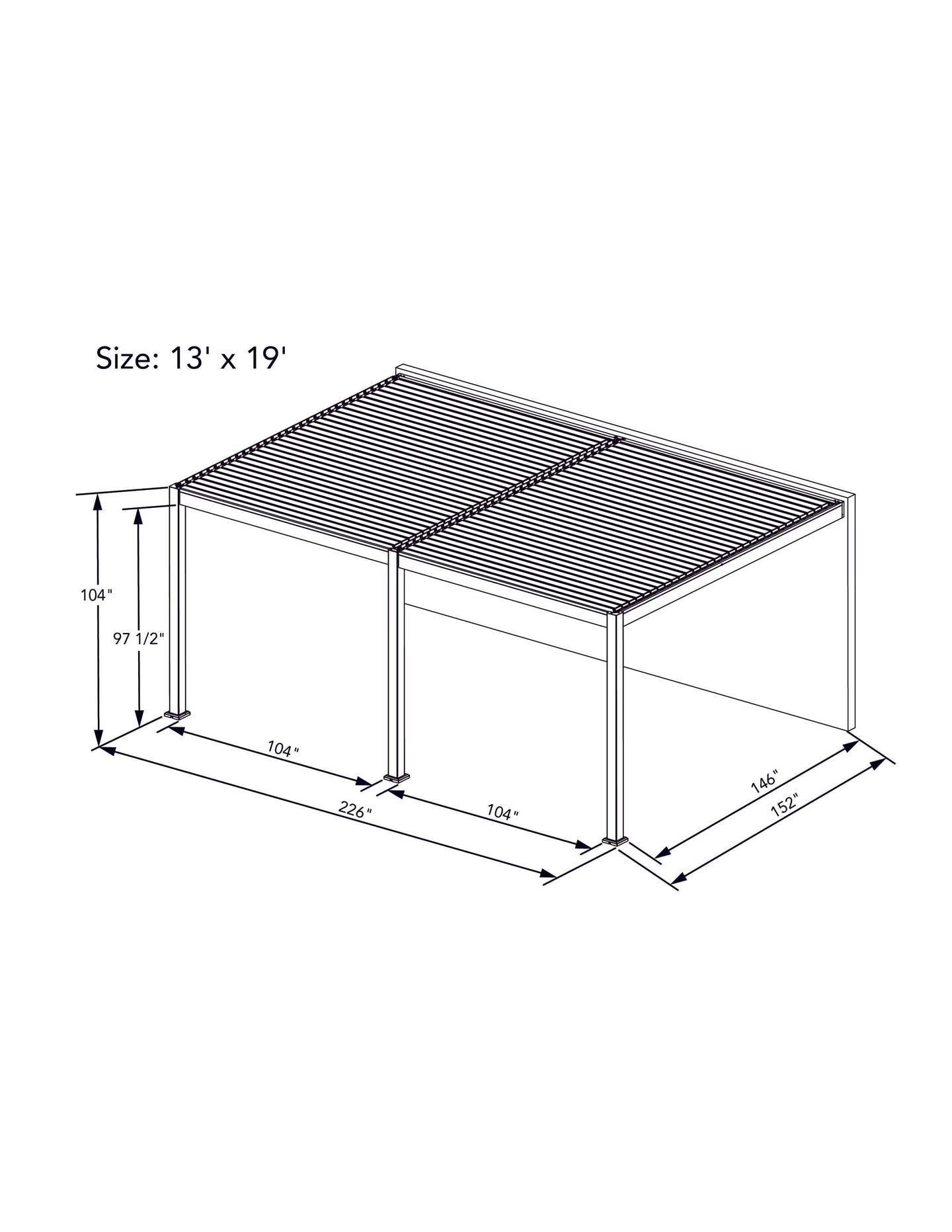

• 13' x 19': Dimensions: Outer 152"x226"x104" (Inner Dimensions 146"x214"x97.5") - 6 Boxes, 965 LB (Packaging: 6 Cartons on a pallet, 160x48x30, 1120LB include pallet)

Note:

＊Please note, we recommend at least two people for unloading. More detail follows:

Villa Pergola: Our Villa pergola comes on a long pallet with straps and wraps around it. You will simply have the trucker cut the straps and wraps on the pallet, so you or your contractors can unload them box by box. You can either unload with the driver ( with some tips ) or have your contractors or friends helping you.
